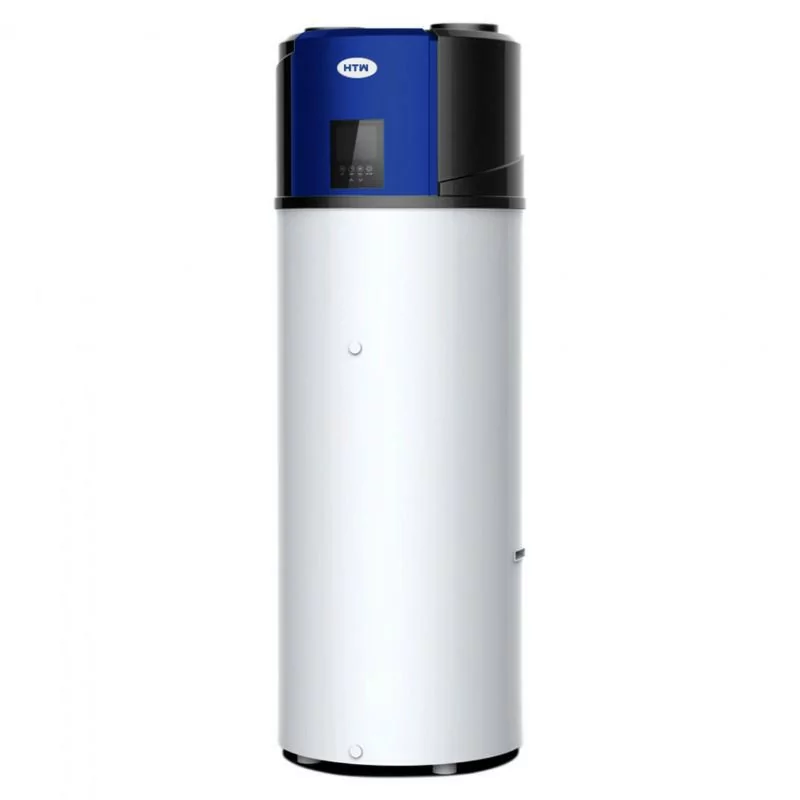

200L HTW Heat Pump - HTW-ATS-O-200VAW

The Heat Pump 200L - HTW-ATS-O-200VAW is an aerothermal storage tank with solar input designed to provide exceptional power and performance in your hot water system. It has advanced features and cutting-edge technology , ensuring energy efficiency and environmental sustainability, making it ideal for homes.

It stands out for its efficiency and durability . It guarantees maximum efficiency even at high temperatures, saves energy unlike other pumps and reduces costs thanks to innovative technology. It is made of high quality stainless steel, offering exceptional durability and resistance. It has a total power of 2.02kW , an absorbed power of 486W , energy class A+ , water temperature 70ºC , tank capacity 200L and also includes Wi-Fi.

Specifications

Performance:

• Current: 3.2A
• Maximum input power: 486W
• Maximum input current: 3.2W
• Heating capacity: 2.02kW
• Hot water capacity: 45L/h
• Power supply: 220-240V (1 Phase ~50Hz)

Characteristics:

• COP: 4.16
• Declared profile: L
• Energy rating: A+
• Maximum operating pressure: 6bar
• Water pressure range: 22bar
• Water temperature: 70ºC
• Water tank capacity: 200L
• Tank internal material: SUS 304 stainless steel
• Tank outer material: Galvanized steel
• Degree of protection: IPX1
• Coating type: Polyurethane
• Sound pressure: 46dB
• Refrigerant Type: R134A
• Refrigerant Load: 0.80kg

Hydraulic connections:

• Water inlet: G3/4 In.
• Water outlet: G3/4 In.
• Drainage: G3/4 In.
• Valve Mounting: G3/4 In.

Solar heat exchanger:

• Water inlet: G3/4 In.
• Water outlet: G3/4 In.

Dimensions and weight:

• Net dimensions (Ø x H): Ø560×1,750mm
• Gross dimensions (WxHxD): 615x615x1,870mm
• Net / gross weight: 90 / 94kg

Brand

HTW

Reference

AT-O-200VAW

Stock Online

Sold out

Stock Store

Sold out

Capacity

200 L

Energy Class

A
