TEKA Plate - Gas - GZC 63310 XBA BK

Designed to save

Fulfilling the energy criteria for Passive House residences, our extractor fans allow the installation of recirculation, avoiding the need for air vents to the outside and promoting insulation. This way, it is possible to reduce the energy needed to air condition your home. *Compared to class D models

Compact and innovative design

Choose the best option for your kitchen. Flexible design for installation with external air outlet or air recirculation. Up to 10 years of peace of mind with state-of-the-art* regenerative filters. The filters regenerate in the oven at 200ºC , eliminating up to 95 % of odors, keeping your kitchen environment clean. * Optional filters for installation in recirculation.

ExactFlame Plates

Trying to get the flame power right is a thing of the past. With ExactFlame you can easily control the flame intensity with the highest precision. Choose the power level between 1 and 9 and that's it!

High efficiency burners

High-efficiency SABAF® burners reduce gas and carbon monoxide consumption by up to 25% . Prepare your favorite recipes while saving money and taking care of the environment.

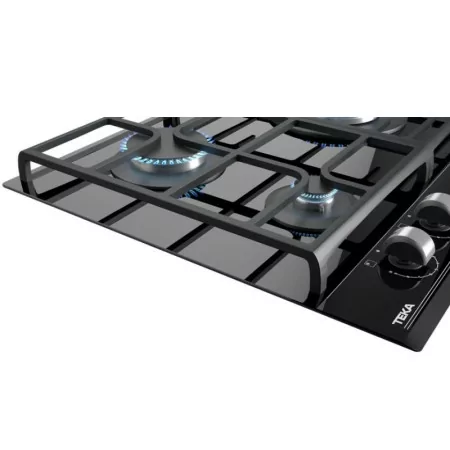

Cast Iron Grills

Cast iron grates designed for full surface use so you can easily move pans.

Autoignition

You don't need a lighter to generate a flame, the Auto-Ignition technology will generate it automatically. Turn the knob and the flame lights up.

Union kit

Compatible with the Teka union kit , which allows you to combine different types of technology in the same cooking area.

Wok Support

Enjoy the benefits of the wok with the wok pan adapter (optional). The best way to cook is to preserve the nutrients in a little oil.

• Brand/Model: Cristal Gás ExactFlame
• Type of Gas: Butane (and Natural)
• Controls: Front, ergonomic design
• Glass Material: Quartzium Ceran, bevelled front, 4 mm high
• Power Levels: 9 levels, exact flame control
• Burners:
• 1 double ring burner: 4.00 kW
• 1 fast burner: 2.80 kW
• 1 auxiliary burner: 1.00 kW
• Safety: Thermocouple, automatic safety shutdown (Auto Lock)
• Lighting: Electric
• Grills: Cast iron, wide surface (Full Grid)
• Wok Support: Optional
• Installation System: Fast Click, easy installation kit included

• Height: 98mm
• Width: 600mm
• Depth: 510 mm
• Net weight: 11.1 kg

• Built-in Width: 570 mm
• Built-in Depth: 480 mm
• Built-in height: 49 mm

• Frequency: 50/60 Hz
• Voltage: 220-240V
• Connection cable length: 100 cm
