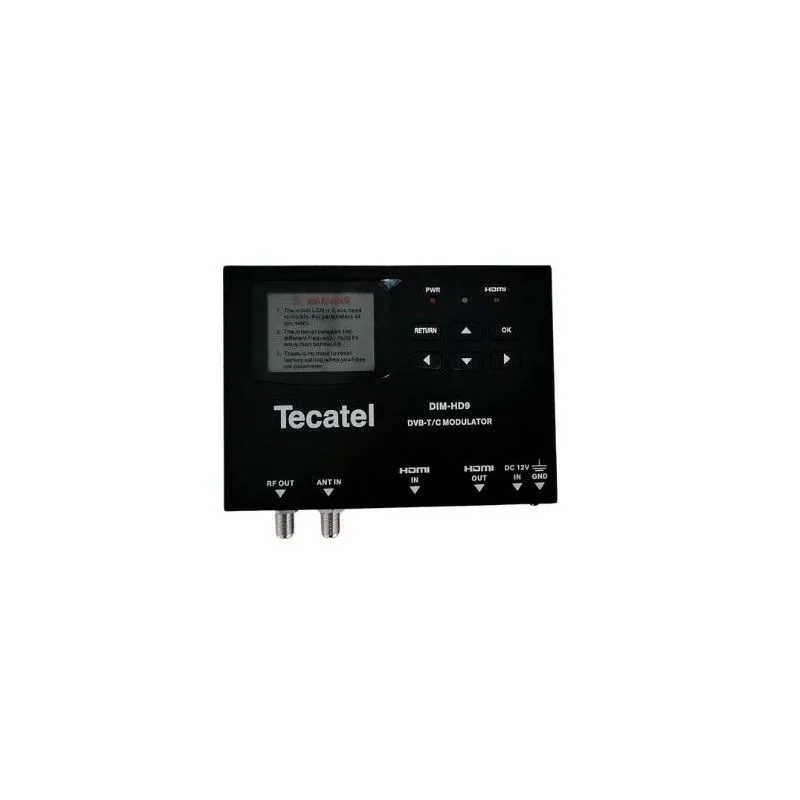

Tecatel HD DIM-HD9 Digital Modulator - DVB T2/C - HDMI Loop
REF: MOD-DIMHD9
EAN: 8430549075078
Tecatel HD DIM-HD9 Digital Modulator - DVB T2/C - HDMI Loop
REF: MOD-DIMHD9
EAN: 8430549075078
notifications
€181.55
Tecatel HD DIM-HD9 Digital Modulator - DVB T2/C - HDMI Loop
• Main Features
- Digital terrestrial and cable modulator (VHF - UHF) with output level adjustment from 0dB to 30dB.
• Performance and Efficiency
- High frequency stability and supported modulations: QPSK, 16QAM, 64QAM.
• Smart Features
- Easy programming via keypad and LCD screen, with HDMI loop support.
HDMI input
- Video encoding: MPEG-4 AVC/H.264
- HDMI interface: Type A
- Resolution: 576i > 1080p
- H.264 Compression: Bitrate 1-20 Mb/s
- Aspect ratio: 16:9, 4:3
- Audio: MPGI layer 2, 48KHz sampling rate, bitrate between 64 and 320 kbps
Modulated Output
- LCN Insertion: Yes / No
- Standard: DVB-T/COFDM, DVB/QAM
- FFT Modes: 2K - 8K
- Guard intervals: 1/4, 1/8, 1/16, 1/32
- Code rates: 1/2, 2/3, 3/4, 5/6, 7/8
- Supported constellations: QPSK, 16QAM, 64QAM, 128QAM, 256QAM
- Channel bandwidth: 6 - 7 - 8 MHz
- Connector type: "F" female
- MER: 32 dB typical
Physical Specifications
- Power: AC Adapter 100-240VAC - 12VDC-1.5A
- Operating temperature: 0 ~ +45 ºC
- Dimensions/Weight: 204 x 136 x 51 mm / 0.500 kg
- Brand
- TECATEL
- Reference
- MOD-DIMHD9
- Stock Online
- Sold out
- Stock Store
- Sold out
See our return policy to find specific return information for this product and steps on how to return in-store or by mail.
