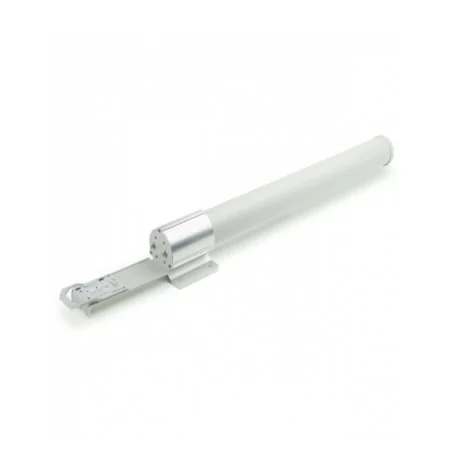

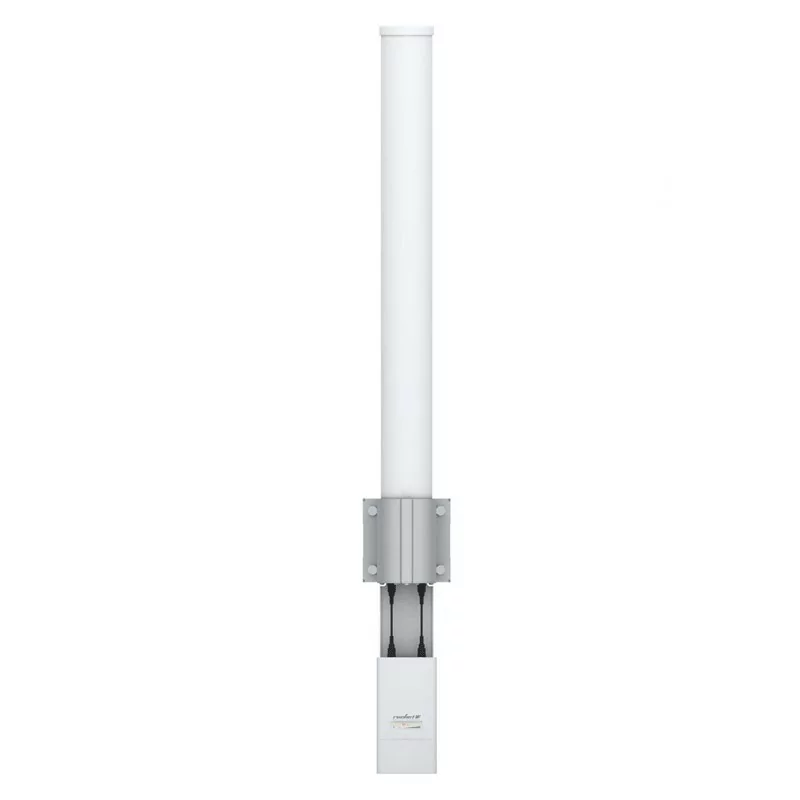

The airMAX® Omni antenna is a 2x2 dual polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).
The airMAX Omni antenna provides powerful 360° coverage, 2x2 MIMO performance in line-of-sight (LoS) or no-line-of-sight (NLoS) applications.
Performance
Frequency band: 2.35 - 2.55 GHz
Horizontal Beam Width (2.4GHz): 12°
Vertical Beam Width (2.4GHz): 4°
Antenna signal level (max): 10 dBi
Characteristics
Antenna type: Sector antenna
Polarization: Dual polarization
Standing Wave Ratio Voltage (VSWR): 1.7:1
Mounting capacity: Wall
Purpose: Outdoor
Product Color: White
Regulatory Approvals: EN 302 326 DN2
weights and dimensions
Product width: 1030mm
Unit Depth: 122 mm
Unit Height: 84mm
Product weight: 2.1 kg
Package content
Quantity per set: 1 unit(s)
