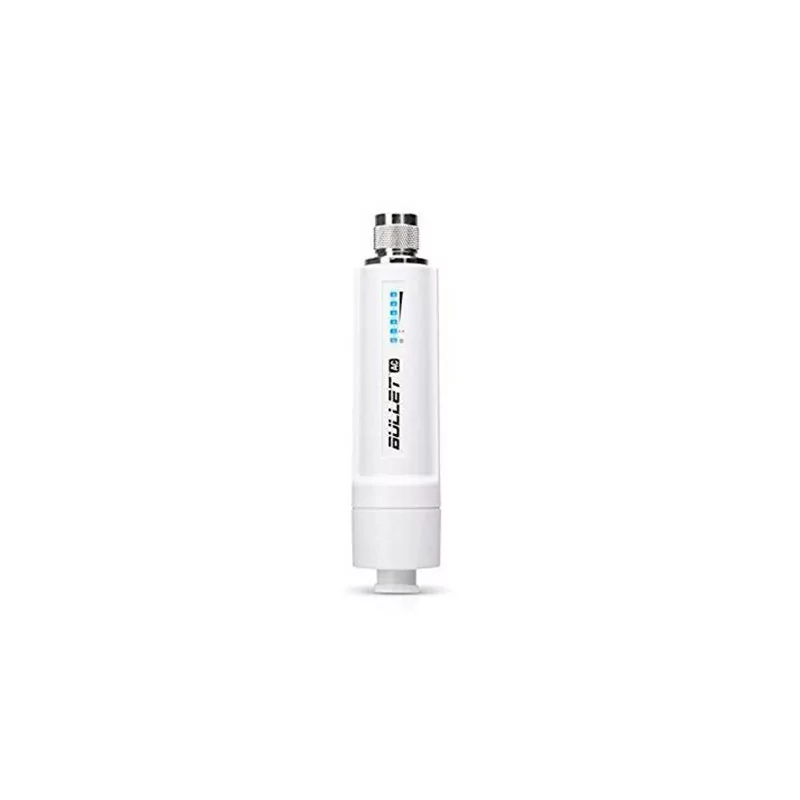

UISP airMAX Bullet AC Dual-Band Radio

Ubiquiti designed the airMAX ac radios for high performance and ease of installation. You now have the freedom to deploy Bullet AC anywhere as it allows a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

Characteristics

• 2.4Ghz: Yes
• 5Ghz: Yes
• Maximum transfer speed: 300 Mbit/s
• Ethernet LAN data transfer rate: 1000 Mbit/s
• Data transmission speed: 300 Mbit/s
• Frequency limits: 80 MHz
• Support for Quality of Service (QoS): Yes

connectivity

• Number of Ethernet LAN ports (RJ-45): 1

Power management

• Power over Ethernet (PoE): Yes
• AC input voltage: 24V
• Current: 0.5 A
• Power consumption (max): 8 W

Design

• Product Color: White
• Dual LED Display: Network, Dust, Signal Strength
• Internal: No

Antenna

• Antenna connector type: Type N
• Number of connectors: 1

Performance

• Operating system installed: AirOS

Environmental conditions

• Relative humidity range: 5 - 95%
• Ambient temperature: -40 - 70 °C

weights and dimensions

• Product width: 190 mm
• Unit Height: 46mm
• Product Weight: 196g
