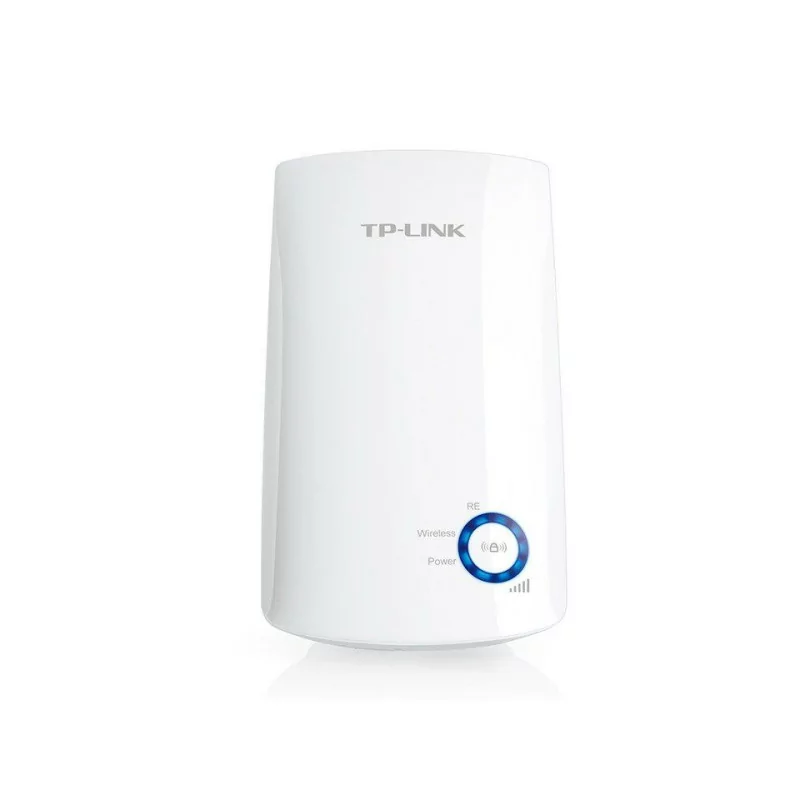

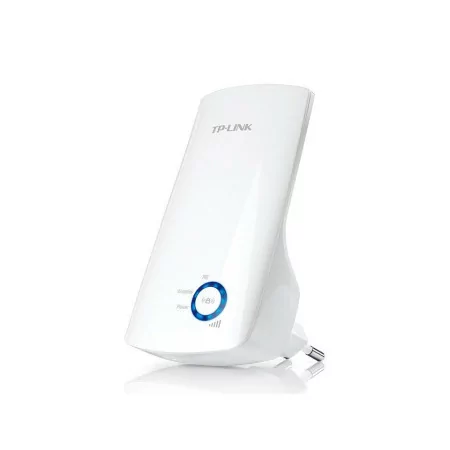

Signal Repeater - TP-Link TL-WA854RE - 300Mbps

- Range Extender boosts wireless signal to previously inaccessible areas.
- Miniature size and wall-mounted design makes it easy to deploy and flexibly move
- Easily expand wireless coverage at the push of a button on the Range Extender
- LED Control Function includes a Night Mode for peaceful sleep

What does this product

TP-LINK TL-WA854RE is designed to conveniently extend coverage and improve signal strength of an existing wireless network to eliminate "dead zones". With the Range Extender Wireless N 300Mbps (speed) button, miniature size and wall mount design, extending a wireless network has never been easier.

300Mbps Range Extender
The TL-WA854RE is designed to strengthen and expand the Wi-Fi signal in areas where wireless signal was not previously available. The device also reduces signal dropouts to ensure uniform coverage throughout your home or office. With 802.11n Wi-Fi speeds at 300Mbps, it's ideal for watching HD videos, streaming music and playing online games.

Flexible Implementation
With a compact design, it can be applied directly to the electrical outlet, facilitating deployment and flexibility. Once connected to the router, you can place the TL-WA854RE in the desired location to improve signal quality and coverage in your home, without needing to configure the extender again.

plug & play
With no new wires or cables, within range of your Wi-Fi network, you can easily extend your wireless network coverage by pressing the WPS button on the router followed by the Range Extender button on the TL-WA854RE or vice versa. An additional click on the pairing button can quickly establish an encrypted connection with end devices. With no new wires or cables, within the range of your Wi-Fi network, you can easily extend the wireless network coverage by pressing the WPS button on the router followed by via the Range Extender button on the TL-WA854RE or vice versa. An additional click on the pairing button can quickly establish an encrypted connection with endpoint devices.

Intelligent Signal Indicator
5 LED's represent the current signal strength the TL-WA854RE receives from your router, which can help you find the perfect place to install the extender so you can get the best possible signal and performance from your Wi-Fi network.

Universal Compatibility
It works perfectly with all Wi-Fi devices with 802.11 n / g / b standard. It is also compatible with the latest Windows 10 operating system.

HARDWARE FEATURES

• EU plug type
• Button RE (Range Extender) Button, Reset Button
• Power Consumption About 3W
• Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions (W x D x H) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
• 2 * internal antenna

HARDWARE
Buttons · Button: WPS Button, Reset Button

WIFI FEATURES

• Wireless IEEE 802.11b/g/n standards
• Frequencies 2.4~2.4835GHz
• Signal Rate 11n: Up to 300Mbps (dynamic)
• 11g: Up to 54Mbps (dynamic)
• 11b: Up to 11Mbps (dynamic)
• Reception Sensitivity 270M: -68dBm@10% PER
• 130M: -68dBm@10% PER
• 108M: -68dBm@10% PER
• 54M: -68dBm@10% PER
• 11M: -85dBm@8% PER
• 6M: -88dBm@10% PER
• 1M: -90dBm@8% PER
• Transmission power < 20 dBm (EIRP)
• Wireless Range Extender Modes
• Wireless WMM Functions (Wi-Fi Multimedia)
• Wireless MAC Address Filtering
• wireless statistics
• Domain Login Function
• 64/128/152-bit WEP Wireless Security
• WPA-PSK / WPA2-PSK

OTHERS
CE, RoHS certifications
Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA854RE
CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
