SIM REDUNDANT SLOTHS

Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or select automatically by Cudy.

WAN INTERNET, 4G BACKUP

Set the WAN/LAN port to WAN to allow Cudy to use the fixed Internet from the WAN, and the 3G/4G connection works as a backup to provide you with a sustained and reliable Internet connection.

EXTERNAL SMA ANTENNA CONNECTOR

Combined with 4 detachable SMA antenna interfaces to connect external cell phone antennas for better and more stable signal.

4G BAND BLOCKING

4G Band Lock allows you to lock 4G working frequency for one or multiple bands to keep working stability.

TTL DEFINITIONS

Supports manually set TTL values to satisfy ISP requirements (such as Verizon, Visible).

DNS OVER TLS

Supports DNS encryption with CloudFlare or Google, protects your privacy, prevents eavesdropping and manipulation of DNS data through man-in-the-middle attacks.

Main Features:

4G LTE-Advanced Cat.18, max transfer 1.2Gbps

Faster 4G with 4×4 MIMO and DL 5CA technologies

Super-fast AX1800 6 Wi-Fi

Two slots for Nano SIM cards

4 gigabit ports

4 detachable cell phone antennas

2 fixed WiFi antennas

DNS Encryption with Cloudflare/Google/Quad9

VPN WireGuard/OpenVPN/PPTP/L2TP/Zerotier

Specifications:

-Hardware:

-Flash: 16MB (128Mbit)

-DRAM: 256MB (2Gbit) DDR3

-Antennas:

-2 (fixed)

-4 (removable)

-Interface:

-1x RJ45 WAN/LAN port

-3x RJ45 LAN Gigabit Ports

-2x SIM slots (Nano)

-Buttons:

-WPS

-Reset

-Power supply:

-AC power adapter: Input: 90~260V Output: 12V, 1.5A

-DC Input (12V-1.5A) Barrel Plug

-Wireless:

-WiFi speeds:

-2.4 GHz: (802.11ax/n/g/b, MIMO 574 Mbps)

-5GHz: (802.11ax/ac/y/a, MIMO 1201Mbps)

-LTE speeds:

-LTE FDD: Max 1.2Gbps (DL)/150Mbps (UL)

-LTE TDD: Max 545Mbps (DL)/90.6Mbps (UL)

-LTE bands:

-LTE-FDD:B1/B3/B5/B7/B8/B20/B28

-LTE-TDD: B38/B40/B41

-WCDMA: B1/B3/B5/B8

-Dimensions: 253 x 152.5 x 48.2 mm

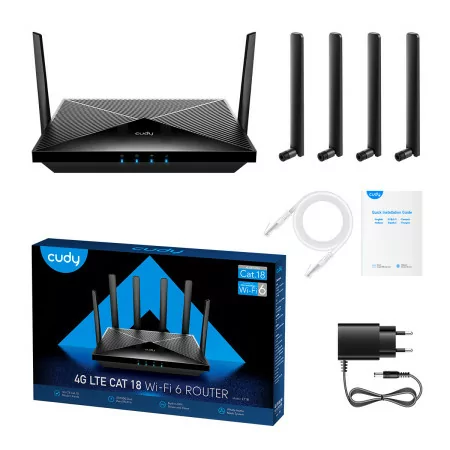

Package content:

-4G LTE Router

-Energy Adapter

- RJ45 Ethernet cable

-Quick Installation Guide
