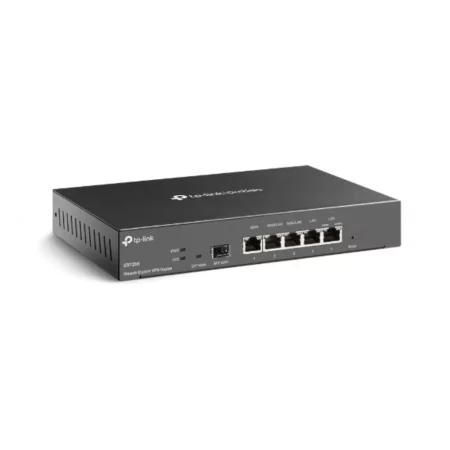

TP-Link TL-ER7206 | Multi-WAN Gigabit VPN Router with Centralized Management Omada SDN

The TP-Link TL-ER7206 is an enterprise-grade VPN router ideal for small and medium-sized businesses that require a secure, powerful, and centralized solution. Built on the Omada SDN platform, it offers remote configuration, continuous monitoring, and simplified deployment, all from a single dashboard.

Main Features:

• Multi-WAN: 1 Gigabit SFP WAN port, 1 Gigabit RJ45 WAN port, and 2 configurable RJ45 WAN/LAN ports, supporting load balancing and automatic backup.
• Advanced VPN: Up to 100 LAN-to-LAN IPsec tunnels, 50 OpenVPN, 50 L2TP and 50 PPTP for secure connections with remote offices and mobile users.
• Omada SDN Integration: Unified management with physical, software or cloud controllers, plus support for the Omada mobile application.
• Firewall and Security: SPI protection, DoS defense, IP/MAC/URL filtering, and access control via captive portal.
• High Performance: Supports up to 150,000 concurrent sessions with robust hardware (512 MB DRAM, 132 MB Flash).

Technical Specifications:

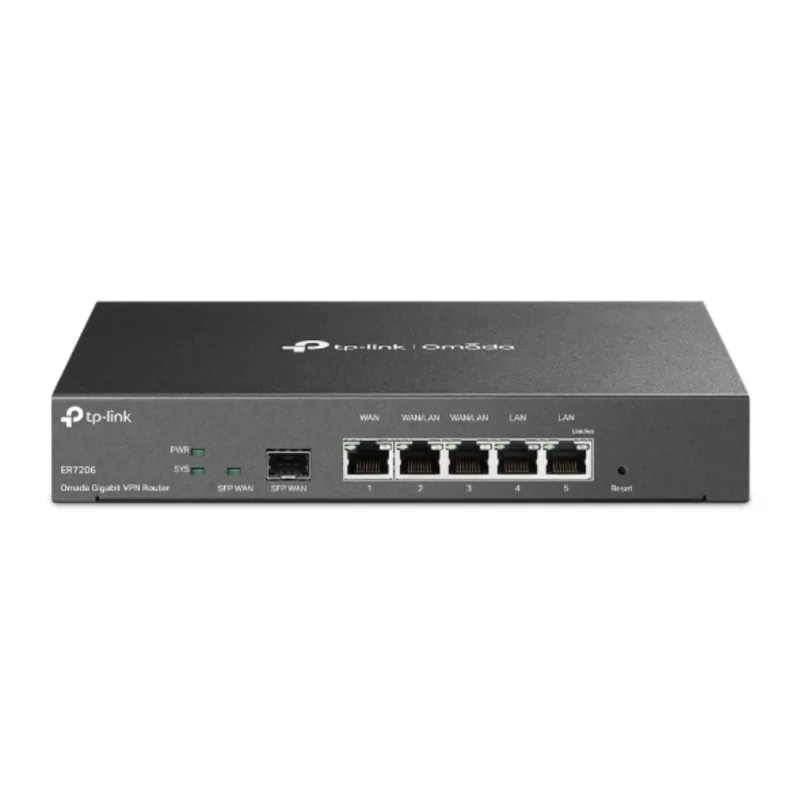

• Ports: 1x SFP WAN, 1x RJ45 WAN, 2x RJ45 WAN/LAN, 2x RJ45 LAN (all Gigabit)
• Memory: 512 MB DRAM, 132 MB Flash
• VPN protocols: IPsec, PPTP, L2TP, OpenVPN
• Management: Web Interface, Omada SDN, Omada App
• Dimensions: 226 × 131 × 35 mm
• Certifications: CE, FCC, RoHS

Package Contents:

• 1x TP-Link TL-ER7206 Router
• 1x Power Adapter
• 1x RJ45 Ethernet Cable
• 1x Quick Installation Guide
