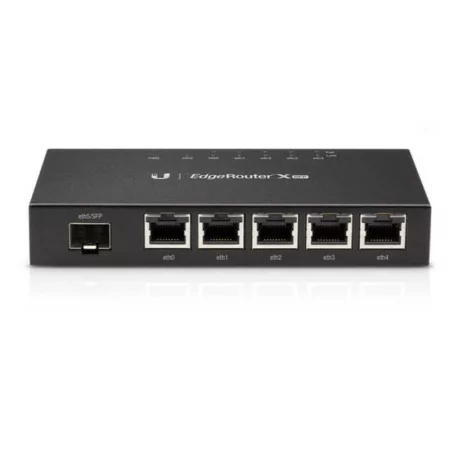

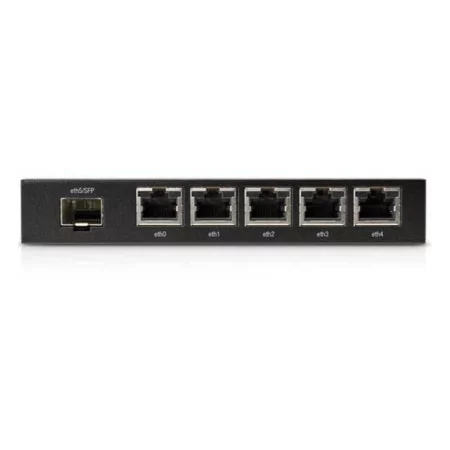

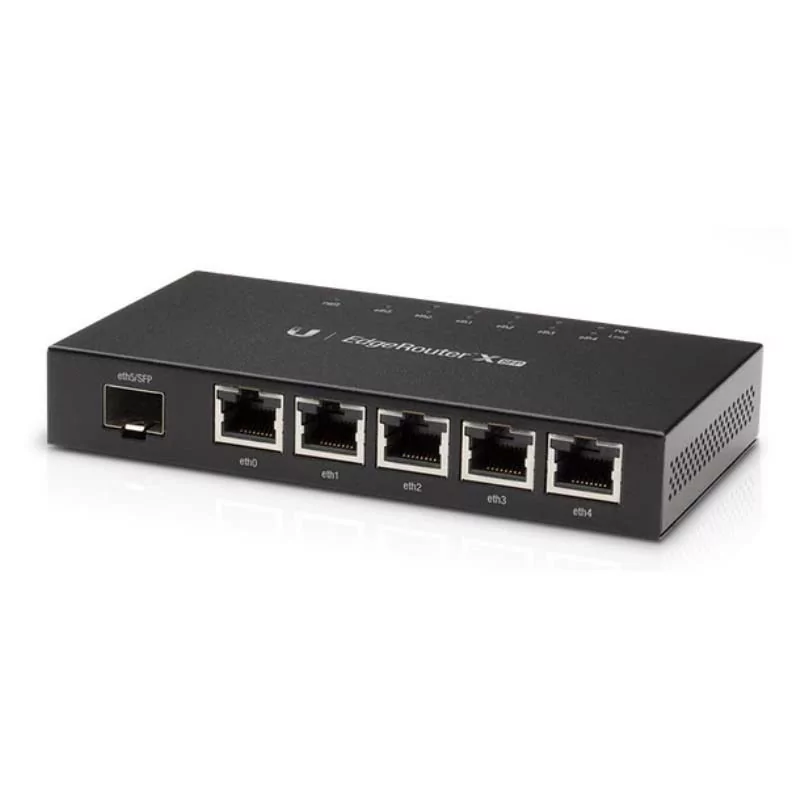

Ubiquiti EdgeRouter X - 6 Ports - POE - SFP

The EdgeRouter™ X SFP combines great performance at an affordable price with the convenience of passive PoE support in a compact form factor.

Features:

• (5) Gigabit RJ45 ports with passive PoE support
• (1) Gigabit SFP port for backhaul applications
• Configurable ports for line rate, Layer 2 switching
• 130 kpps for 64 byte packets
• 1 Gbps for 1518 byte packets

Specifications:

• Dimensions: 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
• Weight: 215 g
• Processor: Dual-Core 880 MHz, MIPS1004Kc
• Memory: 256MB DDR3 RAM
• Code Storage : 256 MB NAND
• Max. power consumption: 5W
• Power Input: 24VDC, 2.5A power adapter (included)
• Power Source : External AC/DC Adapter
• Supported Voltage Range : 9 to 26 VDC
• Buttons: Reset
• LED: Power, Link/Activity (6), PoE (5)
• Wall Mount : Yes
• Operating temperature: -10 to 45°C (14 to 113°F)
• Operating humidity : 10 to 90% non-condensing
• Certifications: CE, FCC, IC
• Data input/PoE port : (5) 10/100/1000 RJ45 ports
• Data port : (1) SFP 100/1000 port
• PoE output voltage range: 22-24VDC
• Max. PoE power per data port : 12W (24V)
• Max. combined PoE power for all 5 data ports: 50W
• PoE Method : Passive

Brand

Ubiquiti

Reference

ER-X-SFP-EU

Stock Online

Sold out

Stock Store

Sold out

Color

Black

PoE

Yes
