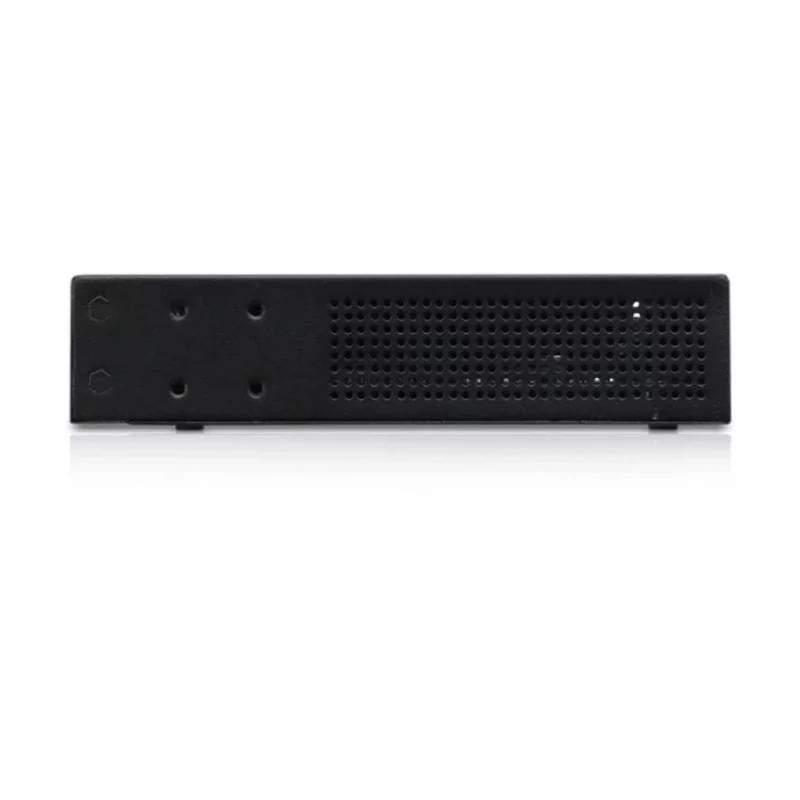

EdgeRouter 12 is a high performance Gigabit router with PoE port. With increased performance over the previous generation of router, the EdgeRouter 12 delivers up to 3.4 million pps for 64-byte packets. It also includes ten Gigabit Ethernet ports that offer copper connectivity, while two SFP ports offer fiber connectivity.

Characteristics:

WAN connection

Ethernet WAN: Yes

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wiring technology: 10/100/1000Base-T(X)

Ethernet LAN data transfer rate: 10,100,1000 Mbit/s

VLAN Support: Yes

management features

Web-based management: Yes

Support for Quality of Service (QoS): Yes

reset button: yes

connectivity

Number of Ethernet LAN ports (RJ-45): 10

Number of installed SFP modules: 2

Serial communications ports: 1

DC-in cable: Yes

Protocols

DMZ Support: Yes

DHCP Client: Yes

DHCP Server: Yes

Security

Encryption / Security: IPSec,SNMP,SSH

firewall: yes

Access control list: Yes

Characteristics

Built-in Processor: Yes

Processor architecture: MIPS64

Processor frequency: 1000 MHz

Number of processor cores: 4

eMMC storage

Flash memory size: 4000 MB

Built-in memory capacity: 1024 MB

Regulatory Approvals: CE, FCC, IC

Design

Product Color: Black

Shelf mount: Yes

Rack capacity: 1U

Dual LED display: Activity, Link, PoE

Antenna

Antenna type: Not supported

Power management

Power: 24W

Power supply type: DC, PoE

AC input voltage: 110 - 240 V

AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE): Yes

Environmental conditions

Ambient temperature: -10 - 50 °C

Relative humidity range: 10 - 90%

weights and dimensions

Product Width: 268.1mm

Unit Depth: 136.5mm

Unit Height: 31.1mm

Product Weight: 700g
