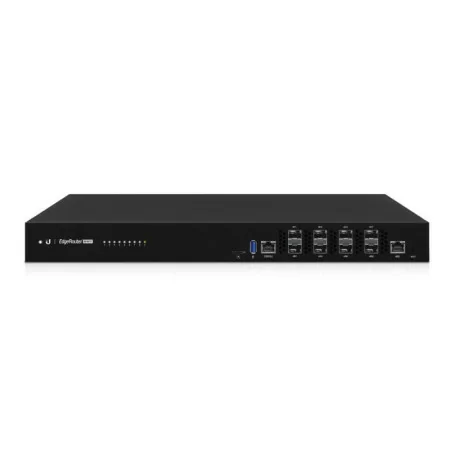

The EdgeRouter Infinity combines an aggregated 80Gbps throughput with value for money in a compact rackmount form factor. Eight SFP+ ports provide 10G fiber connectivity and one Gigabit Ethernet RJ45 port provides copper connectivity. The EdgeRouter Infinity includes main and backup AC/DC power supply modules.

management features

Switch Type: Managed

Switch layer: L3

Support for Quality of Service (QoS): Yes

Web-based management: Yes

connectivity

Number of Basic Switching RJ-45 ethernet ports: 1

Basic switching RJ-45 ethernet port types: Gigabit Ethernet (10/100/1000)

Number of installed SFP+ modules: 8

Console input: RJ-45

Network

10G Support: Yes

VLAN Support: Yes

Security

DHCP features: DHCP server,DHCP client

Access control list: Yes

SSH/SSL support: Yes

Protocols

Management protocols: Web UI, CLI (GUI, Console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT Discovery Protocol, Syslog

Design

Shelf mount: Yes

Form factor: 1U

Product Color: Black

reset button: yes

Dual LED display: Status

Number of fans: 3 fan(s)

Regulatory Approvals: CE, FCC, IC

Performance

Built-in Processor: Yes

Processor frequency: 1800 MHz

Memory type: DDR4-SDRAM

Built-in memory capacity: 16384 MB

Flash memory size: 4096 MB

Power management

AC input voltage: 100 - 240 V

Power consumption (max): 100W

Environmental conditions

Ambient temperature: -5 - 40 °C

Relative humidity range: 5 - 95%

weights and dimensions

Product Width: 442.4mm

Unit Depth: 285.6 mm

Unit Height: 43.7mm

Product weight: 4.95 kg

Packaging

Cables: AC

User Manual: Yes

Rubber feet: yes

Mounting Brackets Included: Yes

Screws Included: Yes

Other features

Voltage: 24V
