12 High Efficiency Antennas

Each antenna group contains three high-performance antennas, one 2.4GHz and two 5GHz, to provide greater signal coverage.

2.5GBPS Gaming Port

Wired devices can also benefit from a high-speed network, similar to gaming networks.

1GB High Memory

Supports simultaneous connection of 248 devices*, smart home, laptops, stereos, gaming consoles, keeping everyone satisfied.

Hi-Speed ​​USB 3.0 Port

Connected to a hard drive, change your family's high-speed private cloud disk in seconds, supports SAMBA agreement, smartphones, TVs and PCs.

Custom Gaming Lighting Effects

X-shaped light with 16 million colors for you to choose your favorite. It also supports five light effect modes like Breathing, Rainbow, and Starry Sky.

Specifications:

• Processor: Qualcomm® IPQ8072 quad-core A53 2.2 GHz CPU
• Network Processing Unit: 1.7GHz Dual Core NPU
• Memory: 1GB
• Antennas: External high gain antenna + Internal AIoT antenna
• Heat dissipation: Active cooling

Total ports:

• 1x Adaptive WAN/LAN port 10/100/1000/2500Mbps (Auto MDI/MDIX)
• 1x Adaptive 10/100/1000Mbps WAN/LAN port (Auto MDI/MDIX)
• 3x 10/100/1000Mbps Adaptive LAN Ports (Auto MDI/MDIX)

LED Indicator Lights:

• 1x System indicator
• 1x Internet Indicator
• 5x Network port
• 1x Atmosphere light

Wireless:

• 2.4G Wi-Fi: 4 x 4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1148Mbps)
• 5GHz-1 Wi-Fi: 4 x 4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 4804 Mbps)
• 5GHz-2 Wi-Fi: 4 x 4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate is 2402 Mbps)

Software:

• Operating System: MiWiFi ROM, a smart router operating system based on OpenWRT
• WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist & whitelist), hidden SSID
• Management applications: Supports Web, Android, iOS
• Dimensions: 270 x 270 x 174 mm

Package contents:

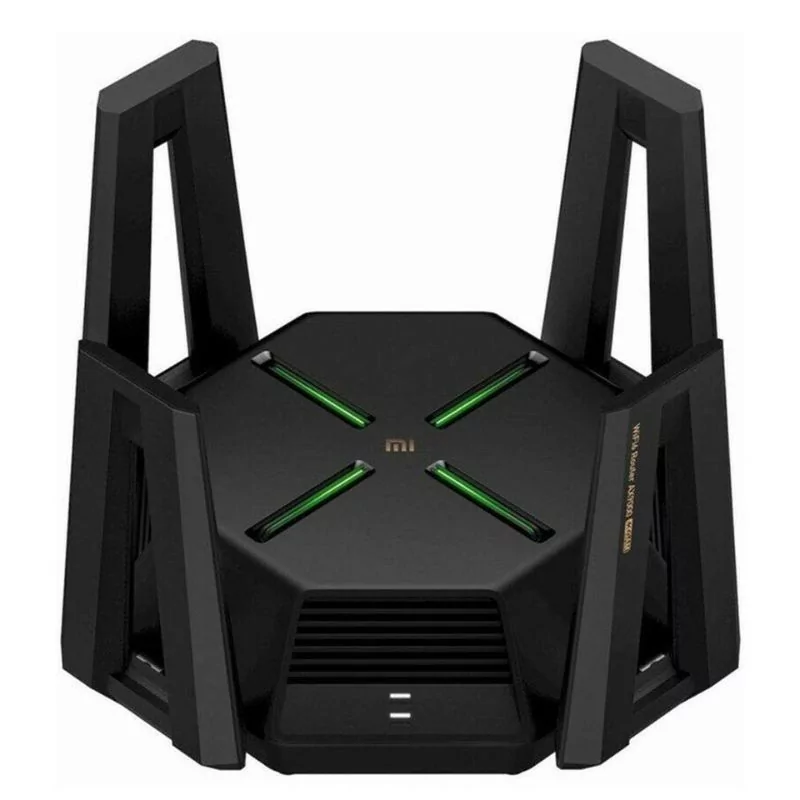

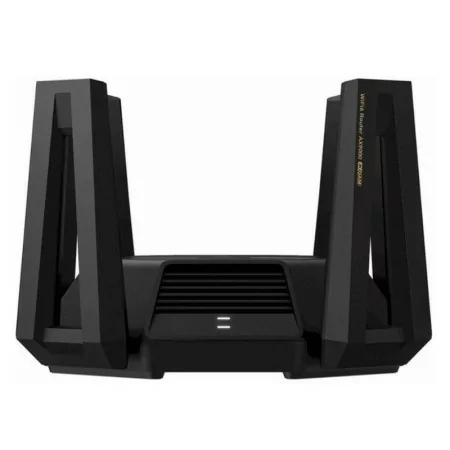

• 1x Mi Router AX9000
• 1x Instruction manual
• 1x Power Adapter
• 1x Network cable
