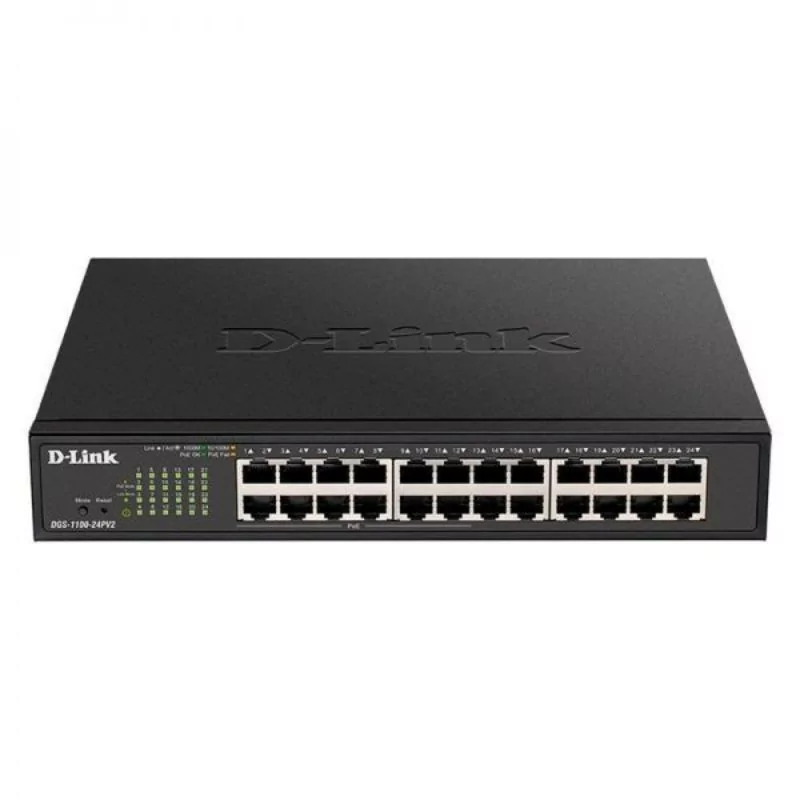

D-Link 24 Port Switch - DGS-1100-24PV2/E

• Hardware Version: B1
• Size: 11" desktop / Rack mount, 1U high
• Number of Ports: 24 ports - 10/100/1000 Mbps (PoE available on ports 1 to 12)

• Switching Capacity: 48 Gbps
• Maximum Routing Speed: 35.71 Mpps
• MAC Address Table Size: 8K entries
• Packet Buffer: 512 Kbits
• Flash Memory: 8 Mbyte

• PoE standard: 802.3af/802.3at
• PoE ports: 1 to 12 (max. 30 W per port)
• PoE Power Budget: 100W

• Typical Consumption: 12.94 W
• Maximum Consumption: 128.3 W (PoE enabled), 21.24 W (PoE disabled)
• Power Input: 100 to 240 V AC

• MTBF: 563,292 hours
• Acoustics: 44.5 dB (A)
• Heat Dissipation: 437.85 BTU/h
• Weight: 2.15 kg
• Dimensions: 280 x 230 x 44 mm
• Ventilation: 1 fan

• VLAN:
• Port-based VLAN
• 802.1Q tagged VLAN
• Auto Surveillance VLAN
• Voice VLAN
• Management VLAN
• asymmetric VLAN
• VLAN Group (supports 128 static VLAN groups)
• L2 Features:
• Supports up to 4094 VIDs
• 802.3x Flow Control
• HOL Block Prevention
• Jumbo Frames up to 9216 bytes
• IGMP Snooping (v1/v2/v3)
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring (one to one, many to one)
• Traffic Statistics (Tx Ok, Tx Error, Rx Ok, Rx Error)
• Spanning Tree Protocol (802.1D STP, 802.1w RSTP)
• Quality of Service (QoS):
• 802.1p Quality of Service
• 4 rows per door
• Queue Handling (Strict, Weighted Round Robin - WRR)
• Port-Based Bandwidth Control (Rate Limiting)
• Security:
• D-Link Safeguard
• Traffic Segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS Attack Prevention
• Management:
• SSL - Web-based GUI: Supports IPv4/IPv6
• Client-Based Utility: D-Link Network Assistant Utility
• Supported MIB/RFC Standards:
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793TCP
• RFC826 ARP
• RFC1213 MIB II
• RFC1493 Bridging MIB
• RFC1907 SNMPV2 MIB
• RFC1215 MIB TRAPS
• Convention 802.1P MIB
• Zonedefense Mib
• Private MIB
• RFC951 BootP Client
• RFC1542 BootP/DHCP client

Reference

DGS-1100-24PV2/E

Stock Online

Low stock

Stock Store

Available soon
