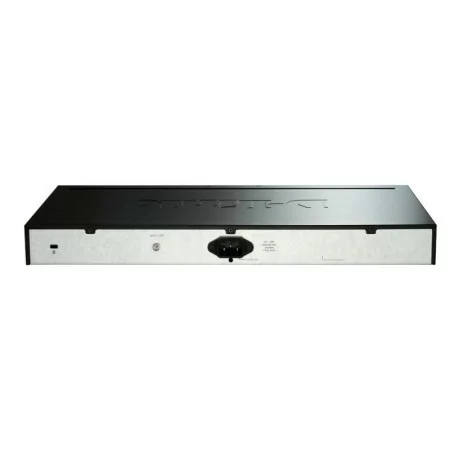

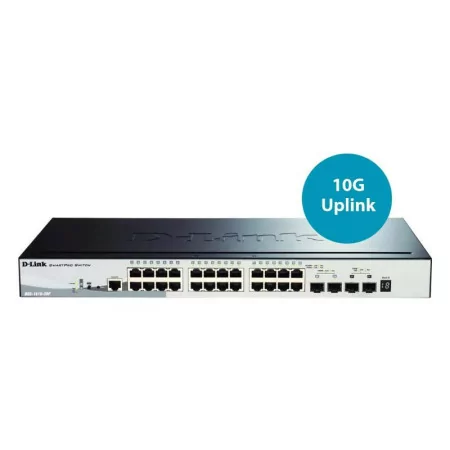

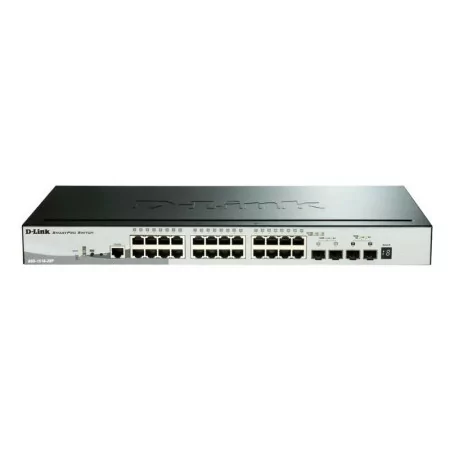

D-link Smart Switch - DGS-1510-28P/E

• Switch type: Managed, Layer 3
• Support for Quality of Service (QoS): Yes
• Web-based management: Yes
• System event reporting: Yes

• Number of RJ-45 Ethernet ports: 24 (Gigabit Ethernet)
• Number of SFP module slots: 2
• Number of SFP+ module slots: 2
• Power Connector: DC Input Jack

• Communications Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
• 10G Support: Yes
• Supported cable types: Cat5, Cat5e
• Port Mirroring: Yes
• Full duplex: Yes
• Auto-negotiation: Yes
• Automatic MAC Address Learning: Yes
• Head-of-Line (HOL) Lock: Yes
• Link aggregation: Yes
• Flow control support: Yes
• Diffusion Storm Control: Yes
• Auto MDI/MDI-X: Yes
• VLAN Support: Yes

• Routing/switching capacity: 92 Gbit/s
• Forwarding rate: 68.45 Mpps
• MAC address table: 16000 entries
• Store-and-forward: Yes
• Number of static routes: 512
• Supports jumbo packages: Yes
• Stored package memory: 1.5 MB

• DHCP features: DHCP server, DHCP client
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• SSH/SSL Support: Yes
• Static port security: Yes
• MAC address filtering: Yes

• Shelf Mounting: Yes
• Stackable: Yes
• Product color: Black
• LED Indicators: Activity, Link, PoE, Dust
• Number of fans: 2
• Security: cUL, CB
• Certification: CE, FCC, C-Tick, VCCI, BSMI, CCC

• Physical stacking (units): 6
• Virtual stack (units): 32
• Noise level: 46.4 dB

• Weight: 2.54 kg
• Width: 440mm
• Depth: 250mm
• Height: 44 mm

• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Power consumption (typical): 238.7 W

• Power over Ethernet (PoE): Yes
• Number of PoE ports: 24
• Total Power over Ethernet (PoE) Budget: 193 W

• Operating temperature: -5 - 50 °C
• Temperature limit (storage): -20 - 70 °C
• Operating relative humidity: 0 - 95%
• Non-operating humidity: 0 - 95%
• Heat dissipation: 813,967 BTU/h

• Package length: 348 mm
• Packaging depth: 511 mm
• Package height: 91 mm
• Package weight: 4 kg

Reference

DGS-1510-28P/E
