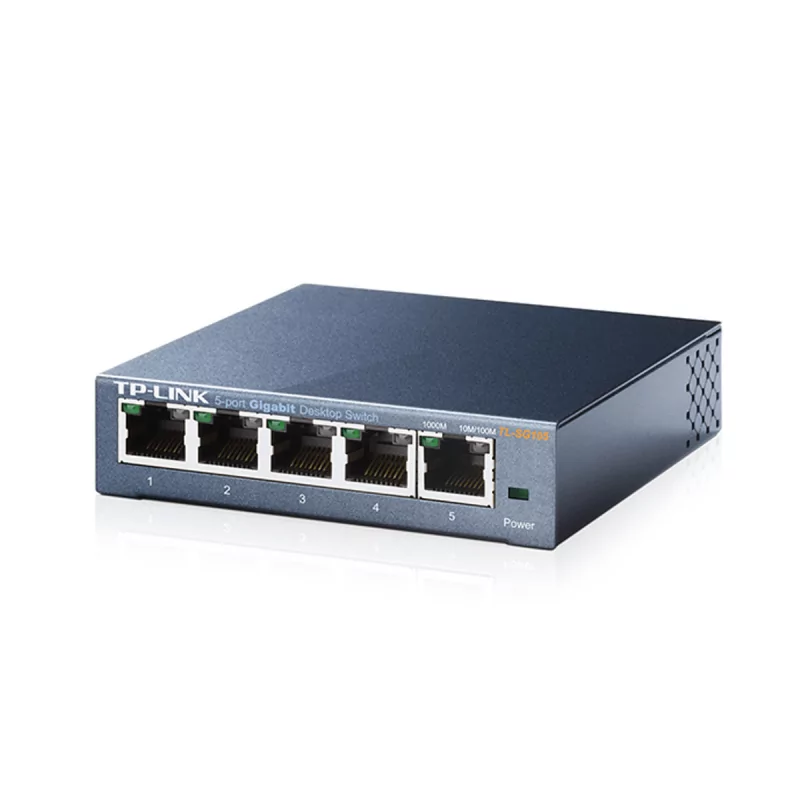

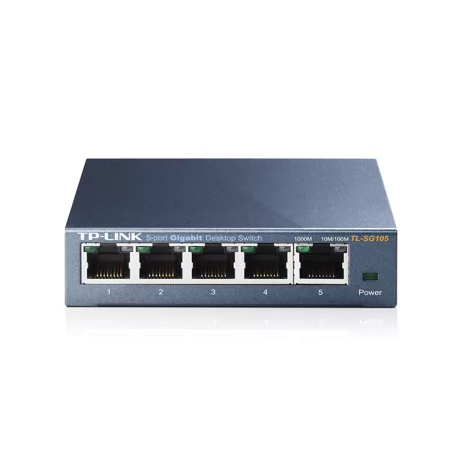

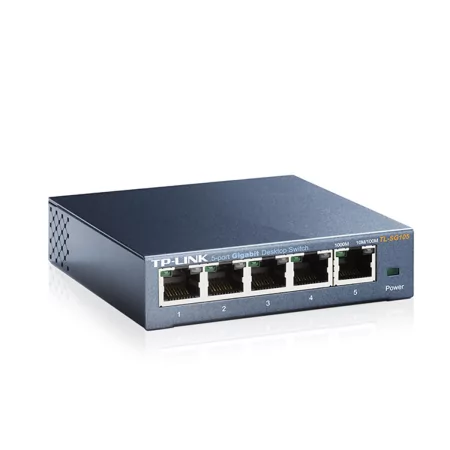

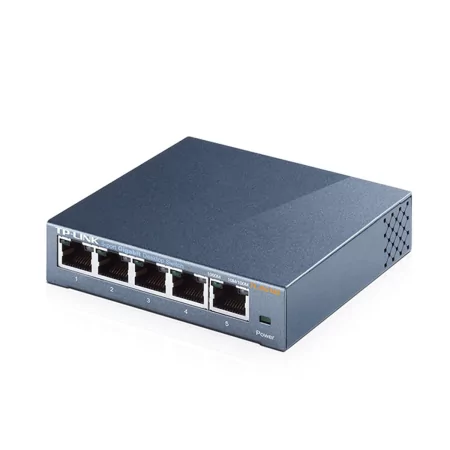

TL-SG105

• 5-10/ 100/1000Mbps auto-negotiation RJ45 ports support Auto-MDI/MDIX
• Green Ethernet technology saves consumption up to 84%
• IEEE 802.3x flow control provides reliable data transfer
• Steel case, desktop or wall mount design
• Supports 802.1p
• Plug and play, no configuration required

What this product does

The TP-Link 5-Port 10/100/1000Mbps Switch provides an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and connections, or make desktop Gigabit a reality. Furthermore, TL-SG105 adopts lower power consumption. With innovative energy-efficient technology, TL-SG105 can save up to 84% of energy consumption, making it an eco-friendly solution for your home or office network.

Specifications

• Software Features
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
• Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fans: No fans
• Power Consumption: Maximum: 3.2W (220V/50Hz)
• External Power Supply: External Adapter (Output: 9VDC / 0.6A)
• LED indicator: On/Off, Speed and activity indicators per RJ45 port
• Dimensions: 99.8 x 98 x 25 mm

• performance
• Packet Forwarding Rate: 7.4Mbps
• MAC Address Table: 2K
• Buffer data memory: 1MB
• Jumbo Frame: 15kb

• Software Features
• Advanced Features: Green technology, energy saving up to 84%, 802.3X Flow Control, 802.1P/DSCP QoS (for V2 and later version), IGMP Snooping
• Transfer Method: Store and Forward

• Others
• Certifications: CE, FCC, RoHS
• Package Contents: 5-Port 10/100/1000Mbps Desktop Switch, Power Supply, Installation Guide
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F), Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5%~90% non-condensing
