Main Features

• 8x10/100M Ethernet ports with PoE support
• 2x10/100/1000M Ethernet Gigabit ports (1x input / 1x output)
• PoE Protocol IEEE802.3af support
• Max. power output of 15.4W by interface
• Combined max. power output of 60W
• Auto detection of connected devices
• Flux control for Full Duplex operation

Network connections

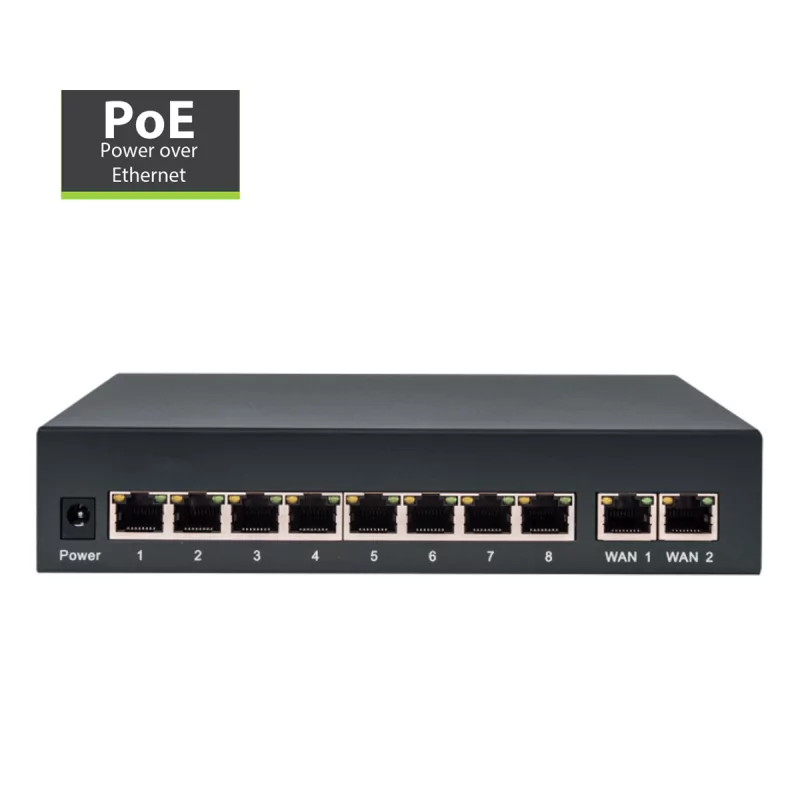

• 1-8 ports: 10/100M PoE
• 9-10 ports (WAN 1/2): 10/100/1000M
• Transmission distance: ~100m (max.)
• Transmission: network standard cable Cat5/5e/6

Network Switch

• Network standards: Base-T Ethernet IEEE802.3/10 / Base-TX Ethernet IEEE802.3/100 / IEEE802.3x Flux Control
• Frame max. size: 1536Bytes
• MacAddress list: 2K
• PoE Standard: IEEE802.3af & IEEE802.3at Flux Control

Power over Ethernet

• PoE adapter: End span (1/2+, 3/6-)

Power Supply

• Voltage: Input: 180-240V AC @ 50/60Hz / Output: DC 48V
• Power consumption: 100W

Physical Specifications

• Dimensions: 212mm x 142mm x 31mm
• Operacional Temperature: 0ºC~55ºC (5%-95%)
• Storage Temperature: -40ºC~70ºC
• Weight: 360gr
