Technical specifications:

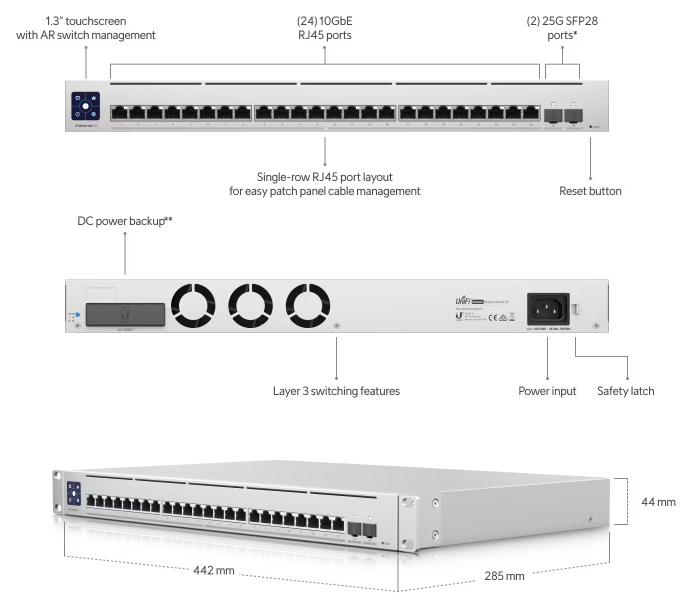

-Dimensions: 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")

Weight:

-Without mounting brackets: 4.47 kg (9.85 lb)

-With mounting brackets: 4.57 kg (11.02 lb)

-Case material: SGCC steel

Hardware:

-Network interface: (24) 100/1000/2500/5000/10000 Mbps RJ45 Ethernet

-Management Interface: In-band Ethernet

-SFP28 Interface: (2) 25G SFP28 ports

-Note: The two SFP28 ports do not support mixed speed in 25Gbps mode.

-When one of the SFP28 ports is configured in 25Gbps mode, the others will also be limited to 25Gbps.

-SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.

-Total non-blocking transfer rate: 290 Gbps

- Switching capacity: 580 Gbps

-Forwarding rate: 431.52 Mpps

-Maximum power consumption: 100W

power method:

-(1) Universal AC input, 100—240 VAC, 2 A max, 50/60 Hz

-(1) USP-RPS DC input, 11.5 V DC, 8.7 A

-Power source: AC/DC, internal, 100W

Services:

-SMB Layer 3 GbE switch

Protection:

-ESD/EMP: Air: ±16kV, contact: ±12kV

Exhibition:

-(1) 1.3" LCM color touchscreen

-Boot animation: boot in progress

-Firmware update icon: Firmware update

Button:

-Factory reset

Operation conditions:

-Operating temperature: -5 to 40° C (23 to 104° F)

-Operating humidity: 10 to 95% non-condensing

Certifications:

-CE, FCC, IC

LEDs:

-System: Status

-Ethernet: Link/Activity

-Application Requirements: UniFi Network: Version 6.1.67 and later
