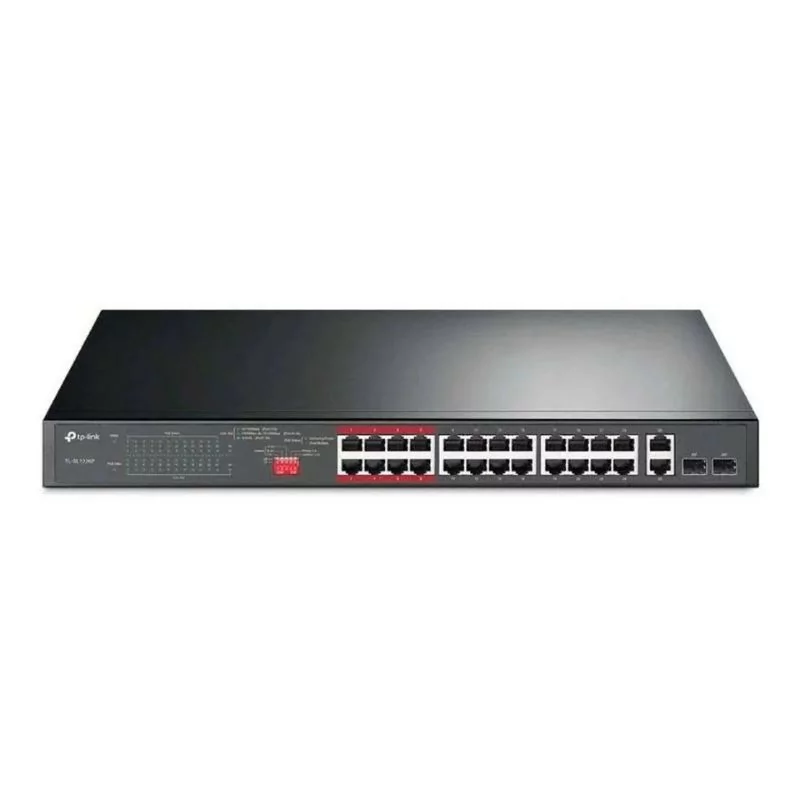

TP-Link 26 Port Switch - SWTPLTL-SL1226P

Dedicated 24-port wide-throw PoE+ switch

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total output power of 250W PoE* for the 24× PoE ports makes it suitable for a wide range of applications such as surveillance, offices, dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Dedicated Design for IP Surveillance

Thanks to the extended mode, the PoE transmission distance can be up to 250 m* – perfect for IP camera deployments in large areas.

Dedicated Design for IP Surveillance

Priority mode and Isolation mode enable smooth and secure surveillance

Smooth HD video monitoring

2 gigabit RJ45 ports and 2 gigabit SFP combo ports ensure smooth video transmission even when 24x HD IP cameras operate simultaneously.

Wide operating temperature with good heat dissipation

Durable metal housing and professional heat dissipation design ensure wide operating temperature (0–50℃) with reliability.

• Switch Type: Unmanaged
• Number of RJ-45 Ethernet Ports: 26 (24 Fast Ethernet ports + 2 Gigabit Ethernet ports)
• Ethernet Port Types: Gigabit Ethernet (10/100/1000)
• Number of SFP Combo Ports: 2
• Communications Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
• Copper Ethernet Cabling Technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Auto MDI/MDI-X: Yes
• Auto Trading: Yes
• Store-and-forward: Yes
• Supports Jumbo Packets: Yes (10000 byte size)
• Stored Package Memory: 4.1 MB
• Shelf Mounting: Yes (1U)
• LED Indicators: Yes
• Number of Fans: 2
• Certification: CE, FCC, RoHS
• Power Supply: AC, included
• AC Input Voltage: 100 - 240 V
• AC Input Frequency: 50 - 60 Hz
• Maximum Power Consumption: 281 W
• Operating Temperature: 0 - 50 °C
• Temperature Limit (Storage): -40 - 70 °C
• Relative Operating Humidity: 10 - 90%
• Non-Operating Humidity: 5 - 90%
• Heat Dissipation: 1002.54 BTU/h
• Quick Start Guide: Yes

• Power over Ethernet (PoE): Yes
• Number of PoE+ Ports (Power over Ethernet plus): 24
• Power per PoE Port: 30 W
• Total PoE Budget: 250W

• Routing/Switching Capacity: 8.8 Gbit/s
• Forwarding Rate: 6.54 Mpps
