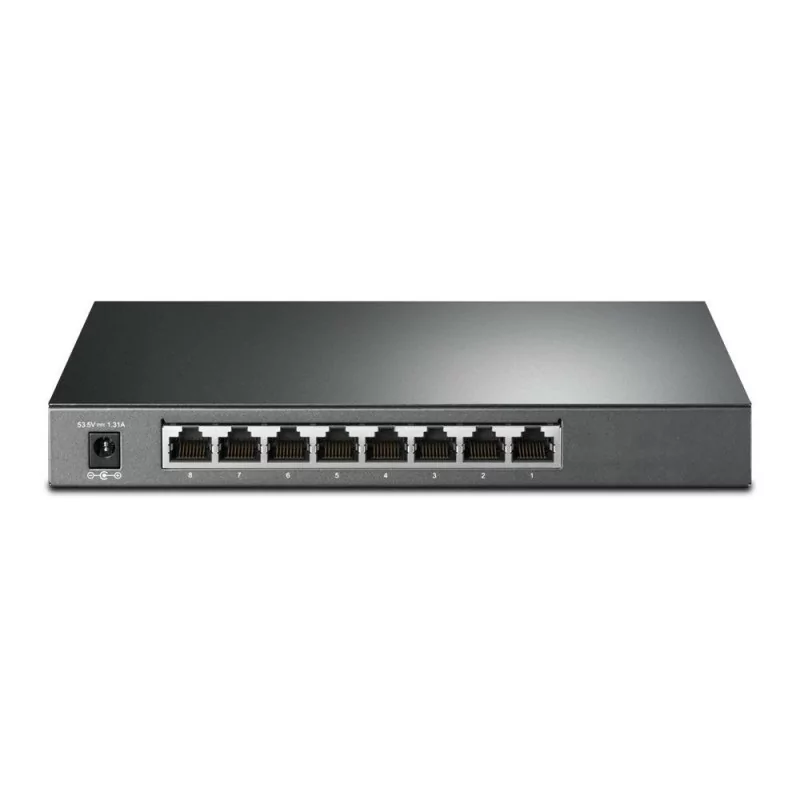

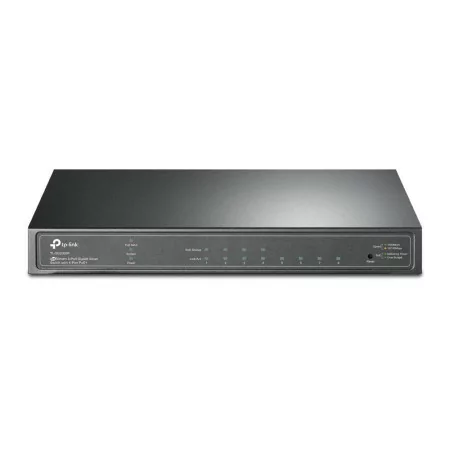

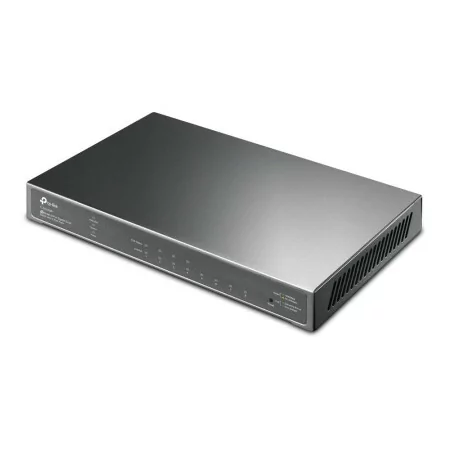

TP-Link 8-port 4× Gigabit PoE+ Management Switch - TL-SG2008P

JETSTREAM SWITCHES

The new Jetstream switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium businesses without sacrificing usability and performance.

• IEEE 802.3i: 10BASE-T Ethernet
• IEEE 802.3u: 100BASE-TX Fast Ethernet
• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
• IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
• IEEE 802.3af: Power over Ethernet (PoE)
• IEEE 802.3at: PoE+
• IEEE 802.3x: Flow Control
• IEEE 802.1d: Bridging (Spanning Tree Protocol - STP)
• IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1q: Virtual LAN (VLAN)
• IEEE 802.1p: Traffic Prioritization (QoS)
• IEEE 802.1x: Network Authentication (Port-Based Network Access Control)

• RJ45 ports: 8×10/100/1000 Mbps
• PoE+: Ports 1–4 compatible with IEEE 802.3at/af
• Functions: Auto-Negotiation / Auto MDI/MDIX

• 10BASE-T: UTP Category 3, 4, 5 cable (maximum 100 m)
• 100BASE-TX / 1000BASE-T: UTP Category 5, 5e or higher (maximum 100 m)

• External Power Adapter:
• Output: 53.5 VDC / 1.31 A

• Standard: Compatible with IEEE 802.3at/af
• PoE+ Ports: 4 Ports
• Power Capacity: 62W

• W x D x H: 209 x 126 x 26 mm

• Without PD Connected: 7.9 W (220 V / 50 Hz)
• With PD Connected (62 W): 173.9 W (220 V / 50 Hz)

• Main Unit: TTL-SG2008P
• Power cable
• Installation Guide
• Rubber Feet
