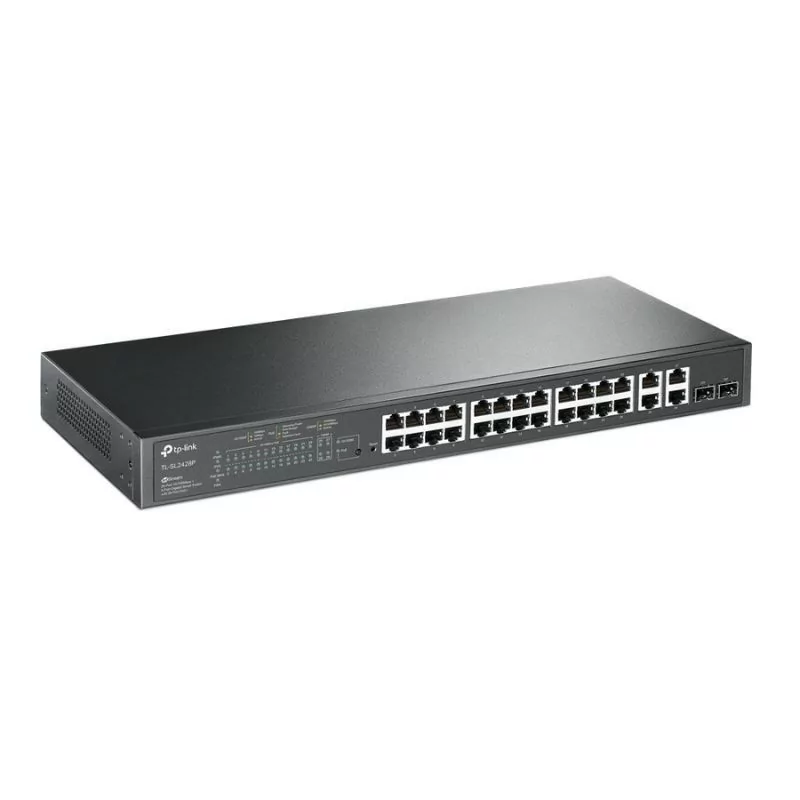

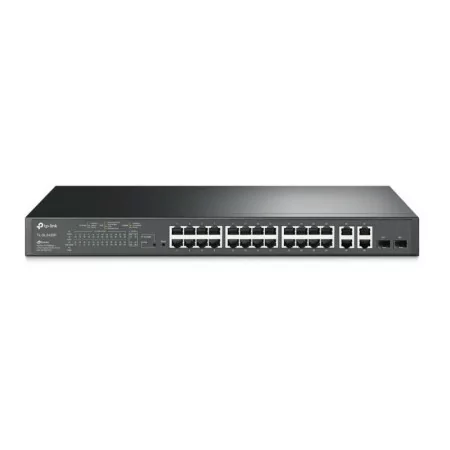

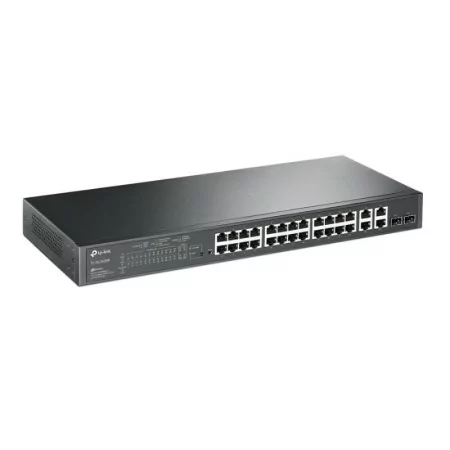

TP-Link PoE JetStream 24Port Switch - TL-SL2428P

• IEEE TP-Link: 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p, 802.3af, 802.3at

• Ports: 24 10/100 Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX), 2 10/100/1000 Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX), 2 RJ45/SFP Gigabit Uplink combo ports

• 10BASE-T: UTP cable category 3, 4, 5 (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP cable category 5, 5e or higher (maximum 100m)
• 1000BASE-X: MMF (Multimode Fiber), SMF (Singlemode Fiber)

• two

• Yes

• 250W

• 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)

• Rack Mount

• 18.8 W (220 V / 50 Hz without PoE device connected)
• 286.7 W (220 V / 50 Hz with 250 W PoE device connected)

• 64.1 BTU/h (without PoE device connected)
• 977.6 BTU/h (220 V / 50 Hz with 250 W PoE device connected)

• Switching Capacity: 12.8 Gbps
• Packet Forwarding Rate: 9.5 Mpps
• MAC Address Table: 8K
• Jumbo Frame: 9216 Bytes

• Quality of Service (QoS): 802.1p CoS/DSCP priority, 8 priority queues, Priority Scheduling Modes: SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Configuration
• Bandwidth Control: Port/Stream Based Rate Limiting, Smoother Performance
• Actions for Flows: Mirroring (for supported interface), Redirection (for supported interface), Rate Limit, QoS Remark
• Storm Control: Multiple control modes (kbps/ratio/pps), Broadcast/Multicast/Unicast Control Unknown

• IPv4/IPv6 interfaces: 16
• Static Routing: 48 static routes
• Static ARP: 128 static entries
• Protective ARP entry: 32 entries

• Link Aggregation Settings: 802.3ad LACP, Up to 8 Aggregation Groups and 8 Ports per Group
• Spanning Tree: 802.1d STP, 802.1w RSTP, 802.1s MSTP, BPDU Filtering/Guard, Root Guard, Loopback Detection
• Discovery Protocol: LLDP (Link Layer Discovery Protocol)
• Network Protocol: ARP Proxy, DHCP Snooping, Network Protocol Detection, Loop Detection
• VLAN Configurations: Up to 512 Simultaneous VLANs (4K VLAN IDs), 802.1Q Tag-Based VLAN, MAC-Based VLAN, Protocol VLAN, Voice VLAN, Private VLAN
• IGMP Snooping Settings: IGMP v1/v2/v3 Snooping, Up to 512 IGMP Groups

• IP-MAC-Port Binding: Up to 512 Bindings
• DOS Protection: DOS Attack Prevention, Port Security Protection Mode
• Access Control: IP/Port Based ACL, MAC Based ACL, Time Based ACL, VLAN Based ACL
• User Authentication: 802.1x, MAC Address Access Control, IP Address Access Control, IP Authentication
• Loop Detection: Yes

• Management Interface: Web-based GUI, Command Line Interface (CLI), Telnet, SSH, SNMP v1/v2c/v3, MIB, RMON, Syslog, Port Mirroring, Remote Management
• Configuration Operations: Configuration Backup and Restore, Firmware Upgrade

• Diagnostic Test: Cable Diagnostics (TDR), Port Statistics Monitoring

• PoE standard: 802.3af/at
• Power Allocation: Auto Adjustment by Priority

• 408,523 hours
