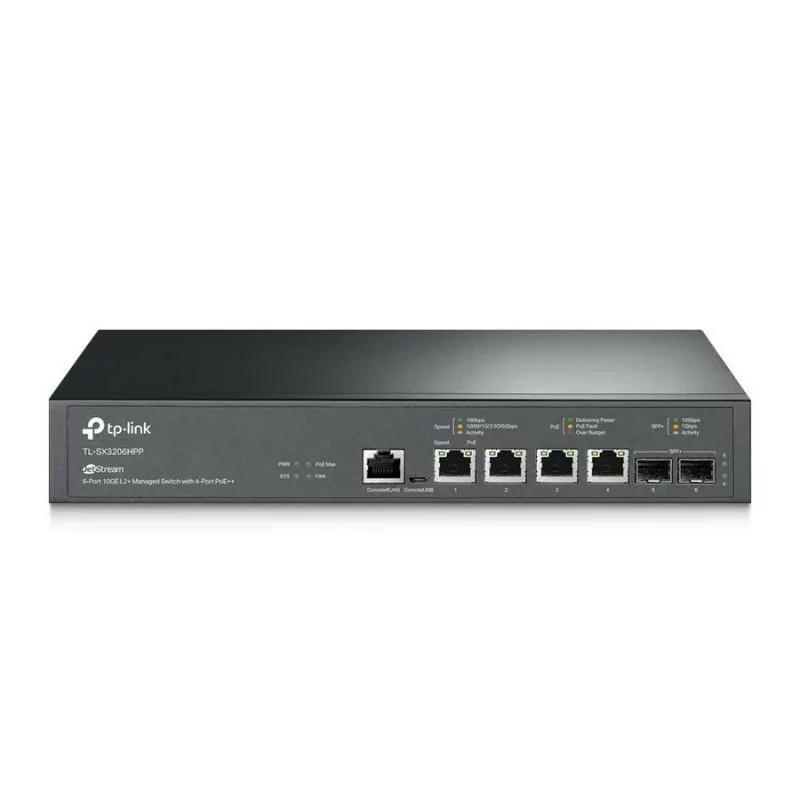

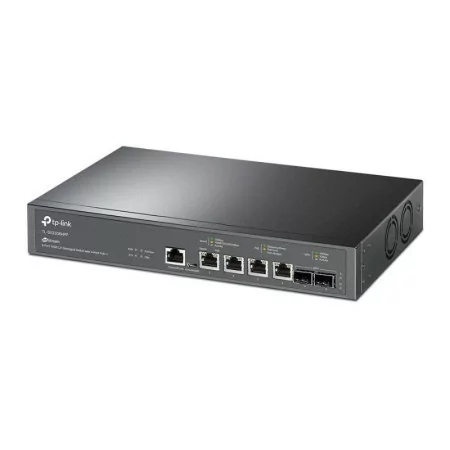

TP-Link PoE JetStream Switch - SWTPLTL-TL-SX3206HPP

• TP-Link Switch Type : Managed
• Switch Layer: L2+
• Quality of Service (QoS): Support present
• Managed in the Cloud: Yes
• Web-based management: Yes
• Location Settings Configuration (DFL): Yes
• ARP Inspection: Yes
• System Event Report: Yes
• MIB Support: Yes

• RJ-45 Ethernet ports: 4
• Ethernet Port Types: 10G Ethernet (100/1000/10000)
• SFP+ Module Slots: 2
• Console Input: RJ-45/Micro-USB
• Power Connector: AC input connector

• Communications Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
• 10G Support: Yes
• Port Mirroring: Yes
• IP Routing: Yes
• Routing Entries: 512
• Spanning Tree Protocol: Yes
• Head-of-Line (HOL) Lock: Yes
• Rate Limitation: Yes
• Link Aggregation: Yes
• Flow Control Support: Yes
• Diffusion Storm Control: Yes
• VLAN Support: Yes
• Virtual LAN features: Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
• Number of VLANs: 4000

• Routing/Switching Capacity: 120 Gbit/s
• Forwarding Rate: 89.28 Mpps
• MAC Address Table: 32000 entries
• Static Route: Yes
• Number of Static Routes: 48
• Supports Jumbo Packs: Yes
• Jumbo Packets: 9000 bytes

• DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
• Access Control List (ACL): Yes
• IGMP Snooping: Yes
• Authentication: Guest VLAN
• BPDU Filtering/Protection: Yes
• Authentication Type: AAA, RADIUS, TACACS+
• SSH/SSL Support: Yes
• Encoding / Security: HTTPS, SSL/TLS
• Loop Protection: Yes

• Multicast Support: Yes
• Multicast Listener Discovery (MLD) Interception: MLD v1/v2

• Management Protocols: SNMP v1/v2c/v3

• Shelf Mounting: Yes
• Product Color: Black
• LED Indicators: Yes
• Number of Fans: 2
• Certification: CE, FCC, RoHS

• Minimum System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® / Linux

• Power Supply: AC
• Power Supply Included: Yes
• AC Input Voltage: 100 - 240 V
• AC Input Frequency: 50/60 Hz
• Power Consumption (Max): 244.9 W

• Power over Ethernet (PoE): Yes
• Number of Power over Ethernet Plus (PoE+) Ports: 4
• Power per Ethernet Power Port (PoE): 60 W
• Total Power over Ethernet (PoE) Budget: 200 W

• Operating Temperature (TT): 0 - 50 °C
• Temperature Limit (Storage): -40 - 70 °C
• Operating Relative Humidity (HH): 10 - 90%
• Non-Operating Humidity: 5 - 95%
• Heat Dissipation: 835.67 BTU/h

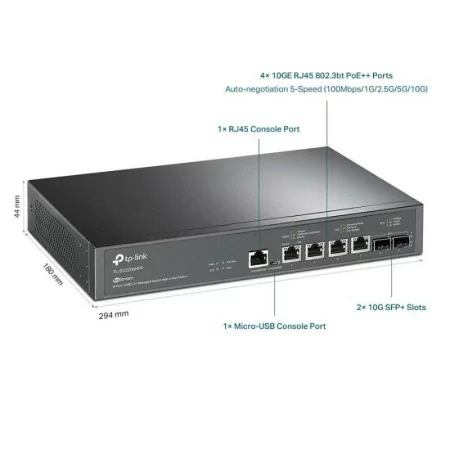

• Width: 294 mm
• Depth: 180mm
• Height: 44 mm

• Cables: AC
• Quick Start Guide: Yes
• Shelf Mounting Kit: Yes
• Package Length: 400 mm
• Packaging Depth: 250 mm
• Package Height: 80 mm
• Package Weight: 2.62 kg

Brand

TP-Link

Reference

SWTPLTL-TL-SX3206HPP

Stock Online

Low stock

Stock Store

Available soon
