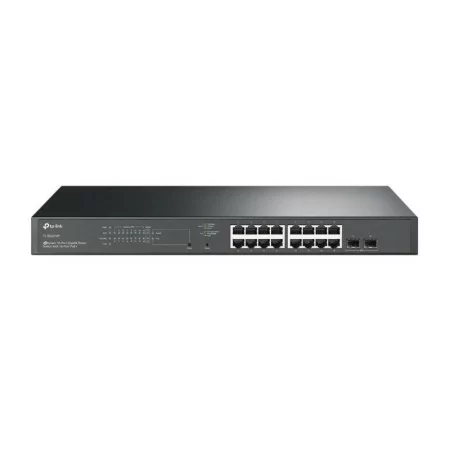

TP-Link Switch PoE 18 Ports - TL-SG2218P

• Protocols and Standards:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az
  • IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interfaces:
  • 16 RJ45 ports 10/100/1000 Mbps (Auto Negotiation/MDI/Auto MDIX)
  • 2 Gigabit SFP slots
• Network Media:
  • 10BASE-T: UTP cable category 3, 4, 5 (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP cable category 5, 5e or higher (maximum 100m)
  • 1000BASE-X: MMF (Multimode Fiber), SMF (Singlemode Fiber)
• Fans:
  • 1 fan
• Power supply:
  • 100-240V AC, 50/60Hz
• PoE ports (RJ45):
  • Standard: Compliant with 802.3at/af
  • PoE+ ports: 16 ports
  • PoE Power Budget: 150 W*
• Dimensions (W x D x H):
  • 17.3 × 7.1 × 1.7 in. (440×180×44mm)
• Assembly:
  • Rack mountable
• Maximum Power Consumption:
  • 181.4 W (110 V/60 Hz) (with 150 W PD connected)
  • 178.3 W (220 V/50 Hz) (with 150 W PD connected)
• Maximum Heat Dissipation:
  • 619.06 BTU/h (110 V/60 Hz) (with 150 W PD connected)
  • 608.52 BTU/h (220 V/50 Hz) (with 150 W PD connected)

• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 26.78 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9KB

• Service quality:
  • 802.1p CoS/DSCP Priority
  • 8 priority queues
  • Priority Scheduling Mode: SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Setting
  • Bandwidth Control: Port/Stream-based Rate Limiting, Smoother Performance
  • Storm Control: Multiple control modes (kbps/ratio), Broadcast/Multicast/Unicast Control Unknown
• L2 and L2+ Features:
  • 16 IP Interfaces: IPv4/IPv6 Interface Support
  • Static Routing: 32 IPv4/IPv6 Static Routes
  • DHCP Server
  • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, L2 DHCP Relay
  • Static ARP
  • ARP Proxy
  • Free ARP
  • Link Aggregation: Static Link Aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group
  • Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protection, BPDU Filter/Protection, Root Protection
  • Loopback Detection
  • Flow Control: 802.3x Flow Control
  • Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Stream-Based, Ingress/Egress/Both
  • Device Link Detection Protocol (DLDP)
  • 802.1ab LLDP/LLDP-MED
• Advanced Features:
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Update
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Restart Scheduling
• VLAN:
  • VLAN Group: Max 4K VLAN Groups
  • VLAN tag 802.1Q
  • VLAN MAC: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN
• Access Control List:
  • Support up to 230 entries
  • Time Slot: Time Slice, Weekly Time Slot, Absolute Time Slot, Holiday
  • Time-based ACL
  • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
  • IP ACL: Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rules Operation: Allow/Deny
  • Policy Action: Mirror, Rate Limit, Redirect, QoS Marking
  • ACL Rule Binding: Port Binding, VLAN Binding
  • Actions for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Marking
• Security:
  • AAA
  • 802.1X: Port-based Authentication, MAC-based Authentication (Host), Authentication Method includes PAP/EAP-MD5, MAB
  • Guest VLAN
  • Supports Radius authentication and accountability
  • IP/IPv6-MAC Binding: 512 Binding Entries
  • DHCP Snoop, DHCPv6 Snoop, ARP Inspection, ND Detection
  • IP Source Protection: 253 Entries, Source IP + Source MAC
  • IPv6 Source Protection: 183 Entries, Source IPv6 Address + Source MAC
  • Defense against DoS
  • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
  • Door Insulation
  • Secure Web Management over HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) with SSHv1/SSHv2
  • IP/Port/MAC based access control
• IPv6:
  • IPv6 Static Routing and ACL
  • IPv6 Dual IPv4/IPv6
  • IPv6 Interface
  • Multicast Listener Discovery (MLD) listening
  • IPv6 Neighbor Discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Message Control Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), SNMP IPv6, SSH IPv6, SSL IPv6, Http/Https, TFTP IPv6
• MIBs:
  • MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting MIB Client (RFC2620)
  • Radius Authentication MIB Client (RFC2618)
  • Remote Ping MIB, Traceroute (RFC2925)
  • Support for TP-Link private MIBs
  • RMON MIB (RFC1757, rmon 1,2,3,9)

• Omada Application: Yes, through:
  • Omada Cloud Based Controller
  • OC300
  • OC200
  • Omada Software Controller
• Centralized Management:
  • Omada Cloud Based Controller
  • Omada OC300 Hardware Controller
  • Omada OC200 Hardware Controller
  • Omada Software Controller
• Cloud Access: Yes, through:
  • Omada Cloud Based Controller
  • OC300
  • OC200
  • Omada Software Controller
• Zero-Touch Provisioning: Yes, requiring use of Omada Cloud-Based Controller
• Management Resources:
  • Web-based GUI
  • Command Line Interface (CLI) via Telnet
  • SNMPv1/v2c/v3
  • Trap/Inform SNMP
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE (Low Energy Ethernet)
  • SNTP
  • System Log

• Certifications: CE, FCC, RoHS
• Package content:
  • TL-SG2218P
  • Power cable
  • Installation Guide
  • Rack Mount Kit
  • Rubber Feet
• System Requirements: Microsoft® Windows® XP, Vista™, or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Temperature and Humidity:
  • Operating Temperature: 0–50℃ (32–122℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
