TP-Link PoE + Switch 28 Ports - TL-SG3428MP

24 POE+ PORTS DEDICATED FOR VARIOUS APPLICATIONS

It has 24 PoE+ compatible 802.3af/at ports, the switch supports up to 384W of PoE power. Designed to use a single Ethernet cable for data and power transmission, it offers flexible deployment for PoE-compatible devices such as wireless access points, IP cameras and IP phones, reducing infrastructure costs for small businesses.

SOFTWARE-DEFINED NETWORKING (SDN) WITH CLOUD ACCESS

Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and routers, providing 100% centralized cloud management. Omada creates a highly scalable network — all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in housing, education, retail, offices and more.

SECURE NETWORK

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a variety of network threats. A built-in list of common DoS attacks is available, making it easier than ever to prevent them. Additionally, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User network access can be controlled through 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

ADVANCED QOS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth even when bandwidth is scarce.

ABUNDANT L2 AND L2+ RESOURCES

A full range of L2 features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams only to the appropriate subscribers, cutting off unnecessary traffic, while IGMP throttling and filtering restricts each subscriber at a port level to prevent unauthorized multicast access. Static routing is a simple way to segment the network and internally routes traffic through the switch for greater efficiency.

ISP FEATURES

QinQ, L2PT, PPPoE ID Insertion and IGMP authentication features are provided, designed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide easy monitoring and troubleshooting of Ethernet links.

IPV6 SUPPORT

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover ensure your network is Next Generation Network (NGN) ready without update your hardware.

ENTERPRISE-LEVEL MANAGEMENT RESOURCES

Easy to manage through an intuitive web-based graphical user interface (GUI) or industry-standard command line interface (CLI). For both management methods, traffic is protected using SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support allows the switch to be queried for valuable status information and send traps on abnormal events.

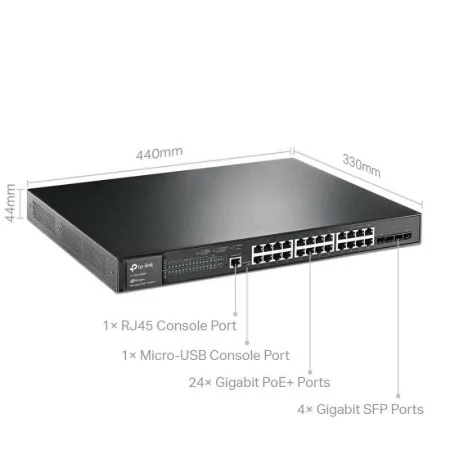

• 24 Ports: 10/100/1000Mbps RJ45 (all with PoE+ support)
• 4 Slots: Gigabit SFP
• 1 Port: RJ45 Console
• 1 Port: Micro-USB Console

• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.66 Mpps
• MAC Address Table: 16K entries
• Jumbo Frame: Supports up to 9 KB

• Standard: 802.3at/af compliant
• PoE+ ports: 24 ports, up to 30W per port
• Power Budget: 384 W

• Number of fans: 2
• Power supply: 100-240V AC~50/60Hz
• Dimensions: 440 × 330 × 44 mm
• Mounting: Rack mountable
• Certifications: CE, FCC, RoHS

• TL-SG3428MP Switch
• Power cable
• Quick Installation Guide
• Rack Mount Kit
• rubber feet
