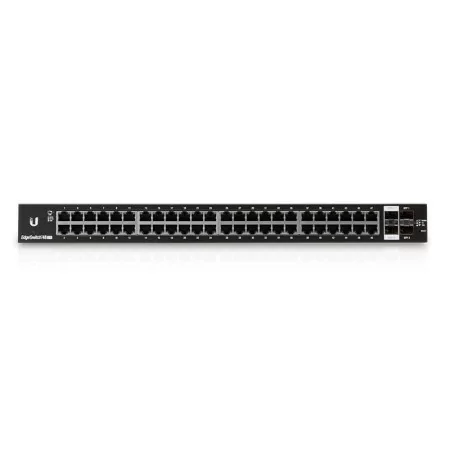

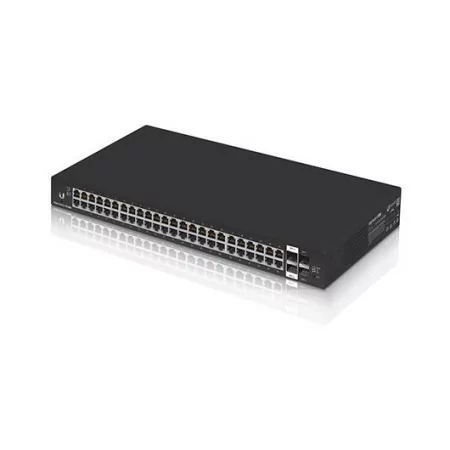

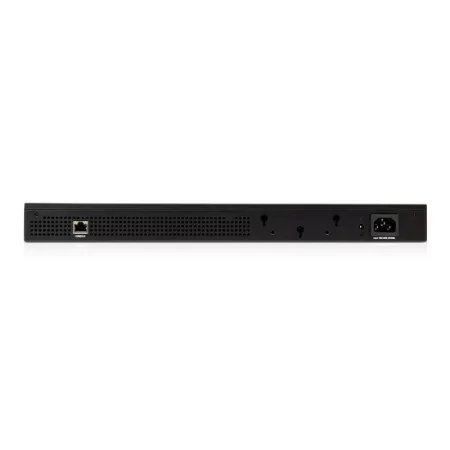

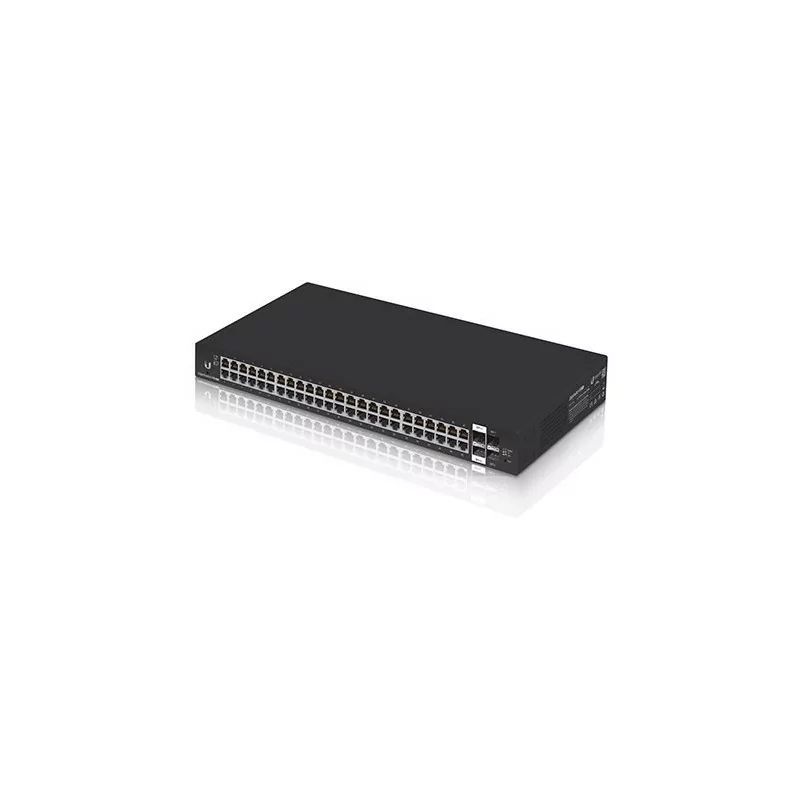

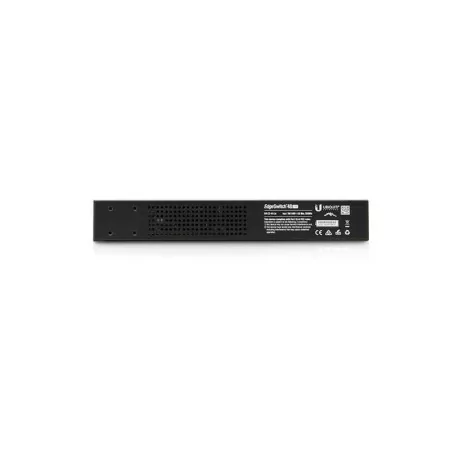

Switch Ubiquiti ES-48-Lite EdgeSwitch 48 Lite

48 Gigabit ports + 2 SFP + 2 SFT Gigabit é-48-lite

SPECIFICATIONS

Dimensions 443 x 43 x 286 mm

Weight

• Rack mount brackets included: 3.65 kg (8.05 lb)
• Rack Mount Brackets Excluded: 3.56 kg (7.85 lb)

• 70 Gbps total non-blocking throughput
• Switching capacity 140 Gbps
• Forwarding rate 104.16 Mpps
• Max. AC power consumption 56W

AC power method:

• 100-240VAC / 50-60 Hz, Universal Input
• DC 56W, 25 to 16V, with 2.5mm DC in-line power connector
• AC/DC power supply, internal, 56W DC

LEDs per port

• Serial console port: N/A
• RJ45 data ports: speed / link / activity
• SFP+ / SFP data ports: speed / link / activity

network interfaces

• Ethernet ports RJ45 10/100/1000 Mbps
• (2) 1/10 Gbps SFP+ Ethernet ports
• (2) 1Gbps SFP Ethernet ports
• Management interface (1) RJ45 serial port, Ethernet input / output bandwidth
• CE, FCC, IC certifications
• Rackmount Yes, 1U high
• ESD / EMP protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -5 to 40 °C (23 to 104 °F)
• Operating humidity 5 to 95% non-condensing
• Shock and vibration ETSI300-019-1.4 Standard
