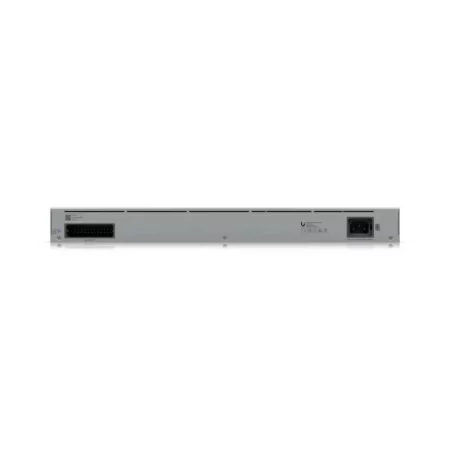

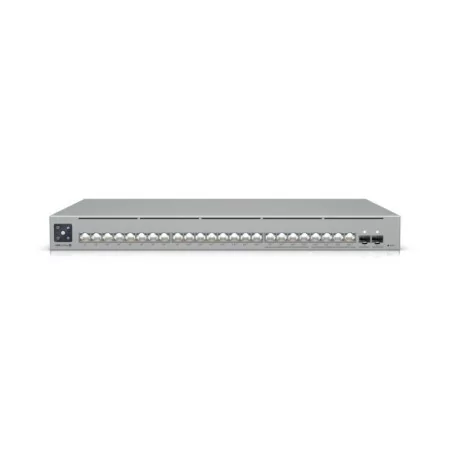

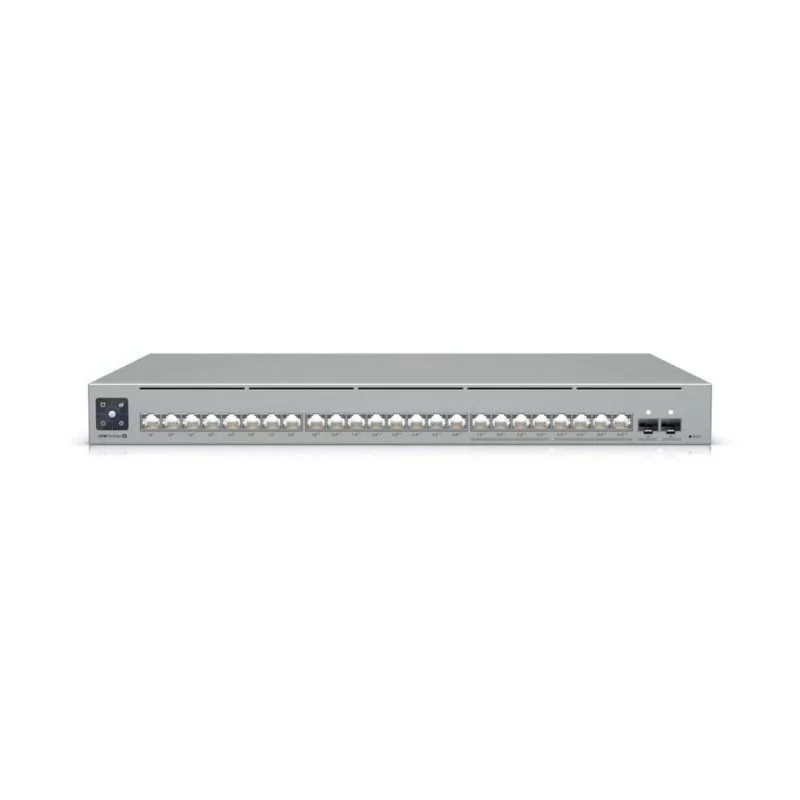

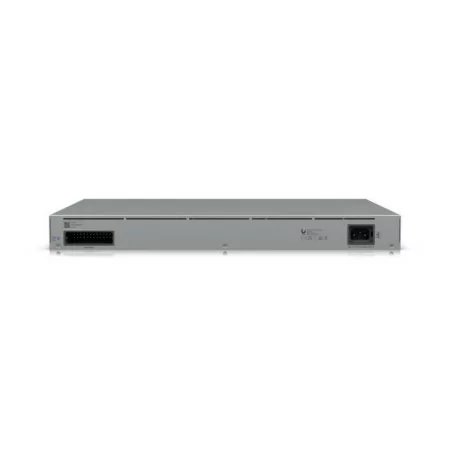

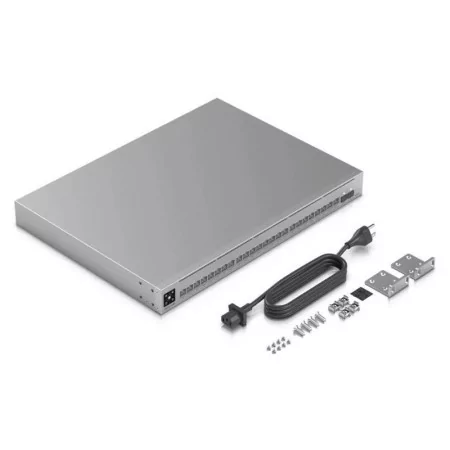

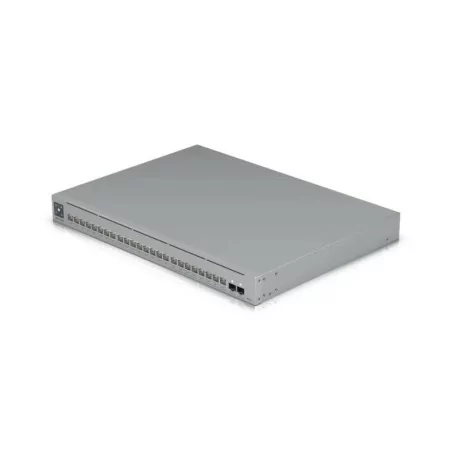

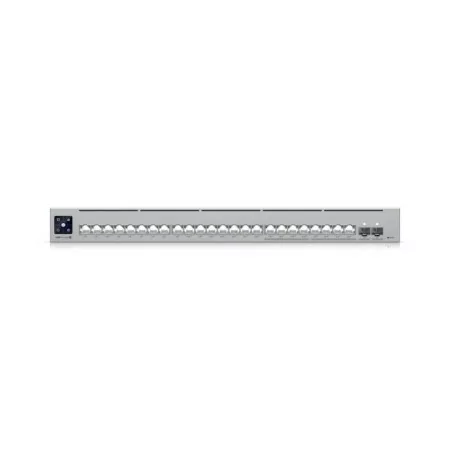

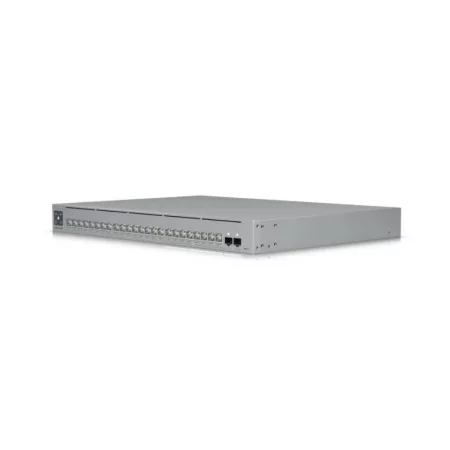

Ubiquiti UniFi Switch Pro Max 24 PoE - (24 Ports - Layer 3 - 2.5GbE - PoE++)

• Dimensions: 442 x 325 x 44 mm
• Weight (Without mounting brackets): 5.1 kg
• Weight (With mounting brackets): 5.2 kg
• Housing Material: SGCC Steel

• Network Interface: (16) GbE RJ45 Ports, (8) 1/2.5 GbE RJ45 Ports, (2) 10G SFP+ Ports
• PoE Interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-), (16) PoE++ 60W (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
• Total Unblocked Throughput: 56 Gbps
• Switching Capacity: 112 Gbps
• Power Method: Universal Input, 100—240V AC, 50/60 Hz, USP-RPS DC Input, Power Supply: AC/DC, internal, 450W
• Supported Voltage Range: 100—240V AC
• Maximum Power Consumption: 50W (Excluding PoE output)
• Total PoE Available: 400W
• Maximum PoE Power per Port by PSE: PoE: 15.4W, PoE+: 30W, PoE++: 60W
• Voltage Range (PoE Mode): PoE: 44—57V, PoE+: 50—57V
• LCD screen: 1.3" touch screen
• Button: Factory reset

• Layer 2 Features: IGMP Snooping, STP/RSTP with port-level priorities and deactivation, Port Isolation, Storm Control, Voice VLAN, Port Mirroring, LACP Port Aggregation, Multicast/Broadcast Rate Limiting , MAC Address Blocking, Flow Control, 802.1X Control, Jumbo Frames, Proprietary Loop Protection, Snooping/DHCP Protection, Egress Rate Limiting, LLDP-MED, MAC Restricted Port, Device Isolation with ACLs
• Layer 3 Features: DHCP for locally managed networks, DHCP Relay, Inter-VLAN routing between networks on the same switch, Static routing between local networks, Network isolation with ACLs, Etherlighting™
• LEDs: System status, RPS status

• UniFi Network Version: 8.0.24 and later

Brand

Ubiquiti

Reference

USW-PRO-MAX-24-POE
