Ubiquiti UniFi Switch Pro Max 48 - (48 Ports - Layer 3 - 2.5GbE)


Ubiquiti UniFi Switch Pro Max 48 - (48 Ports - Layer 3 - 2.5GbE)
Ubiquiti UniFi Switch Pro Max 48 - (48 Ports - Layer 3 - 2.5GbE)
Ubiquiti Unifi

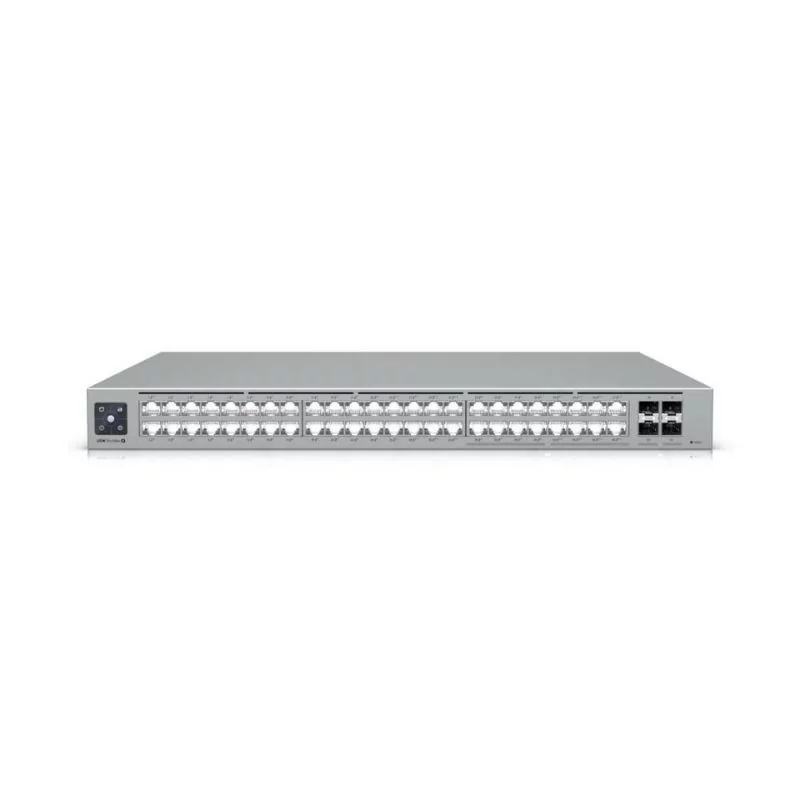

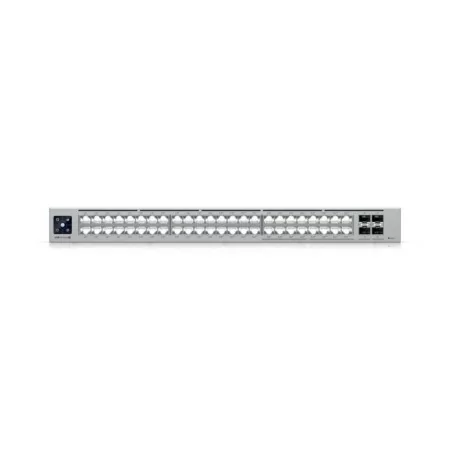

The Ubiquiti Unifi USW-PRO-MAX-48 is a robust and advanced network switch designed to meet the needs of high-performance enterprise networks. With 48 Gigabit Ethernet ports , it provides a reliable connection for multiple devices on a network.
Intuitive Interface
This switch features an intuitive management interface, allowing precise control over network traffic and advanced security configurations. Additionally, it has QoS (Quality of Service) features for traffic prioritization, ensuring a smooth and stable network experience.
High Speed Switching
With high-speed switching capability and support for PoE (Power over Ethernet) , the USW-PRO-MAX-48 is capable of powering compatible devices directly through the network cable, eliminating the need for separate power supplies.
Ideal for Business Environments
This switch is ideal for business environments that require high performance, reliability and scalability in their network infrastructure. With the Unifi USW-PRO-MAX-48 , it is possible to build and manage a powerful and efficient network, meeting connectivity demands effectively.
- Dimensions: 442.4 x 400 x 44 mm
- Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
- Housing Material: SGCC Steel
- Management interface: In-Band Ethernet
- Network Interface:
- 32 GbE RJ45 ports
- 16 1/2.5 GbE RJ45 ports
- 4 10G SFP+ ports
- PoE interface: 32 PoE/PoE+ ports (Pins 1, 2+; 3, 6-)
- 16 60W PoE++ ports (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
- Total Unblocked Transfer Rate: 112 Gbps
- Switching capacity: 224 Gbps
- Power method: Universal input, 100—240V AC, 50/60 Hz; USP-RPS DC Input
- Power supply: AC/DC, internal, 820W
- Supported voltage range: 100—240V AC
- Maximum power consumption: 100W (Excluding PoE output)
- Total PoE available: 720W
- Maximum PoE power per port by PSE:
- PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- PoE mode voltage range: PoE: 44—57V
- PoE+: 50—57V
- LCM screen: 1.3-inch touchscreen
- Button: Factory reset
- Ambient operating temperature: -5 to 40°C
- Ambient operating humidity: 10 to 90% without condensation
- Certifications: CE, FCC, IC
- Layer 2 Features:
- IGMP snooping
- STP/RSTP with port-level priorities and disablement
- Door insulation
- Storm control
- Voice VLAN
- Port Mirroring
- LACP port aggregation
- Multicast/Broadcast Rate Limiting
- MAC address blocking
- Flow control
- 802.1X Control
- Jumbo frames
- Proprietary loop protection
- DHCP Snooping/Guard
- Output Rate Limit
- LLDP-MED
- MAC restricted port
- Device isolation with ACLs
- Layer 3 Features:
- DHCP for locally managed networks
- DHCP forwarding
- Forwarding between VLANs in networks on the same switch
- Static routing between local networks
- Network isolation with ACLs
- Etherlighting™
- Application Requirements:
- UniFi Network: Version 8.0.24 and later.
