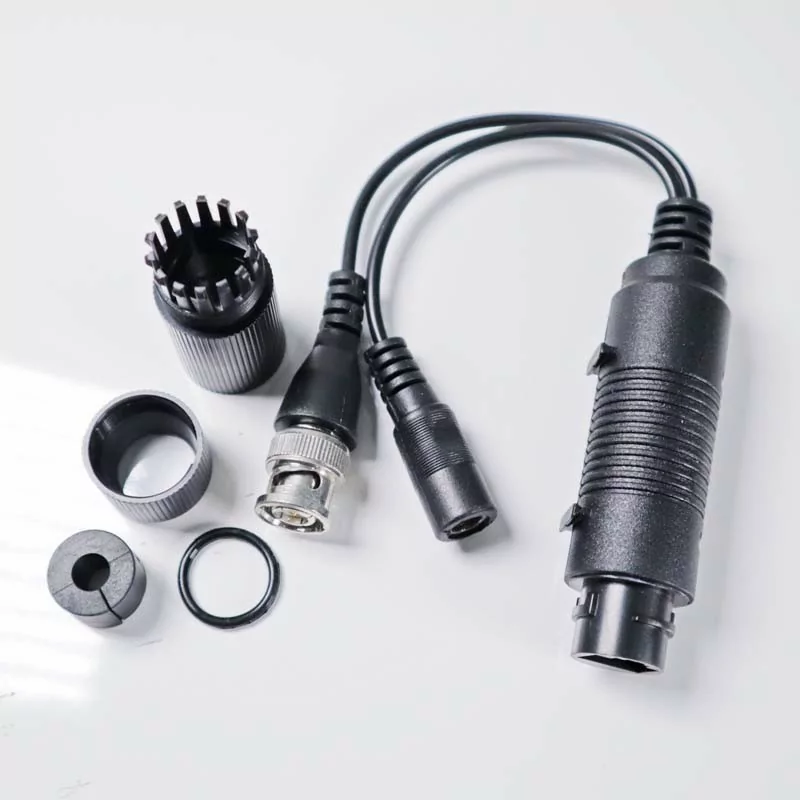

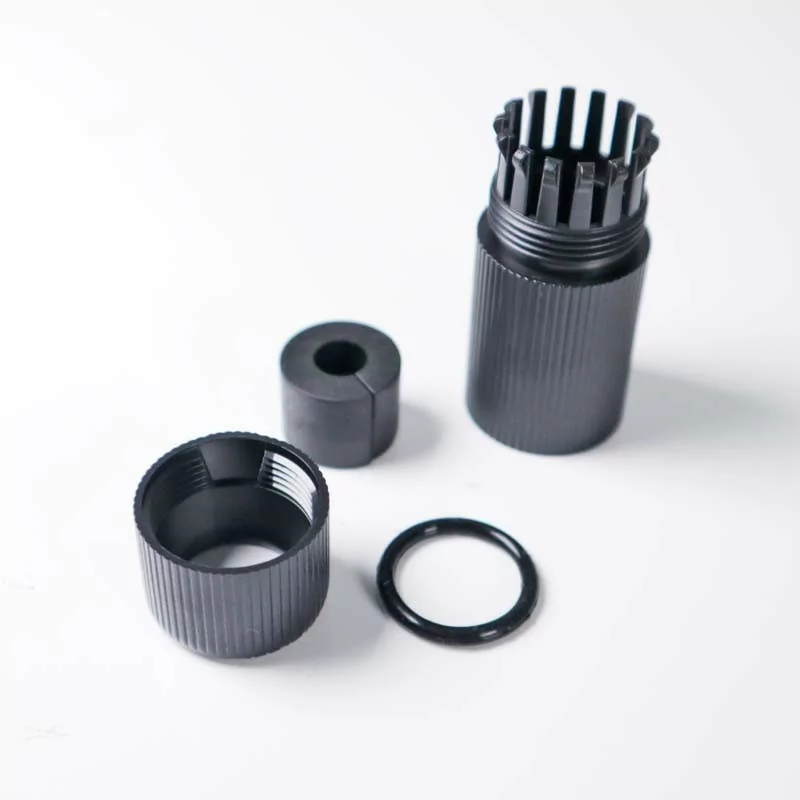

Amiko Video Balun Exterior

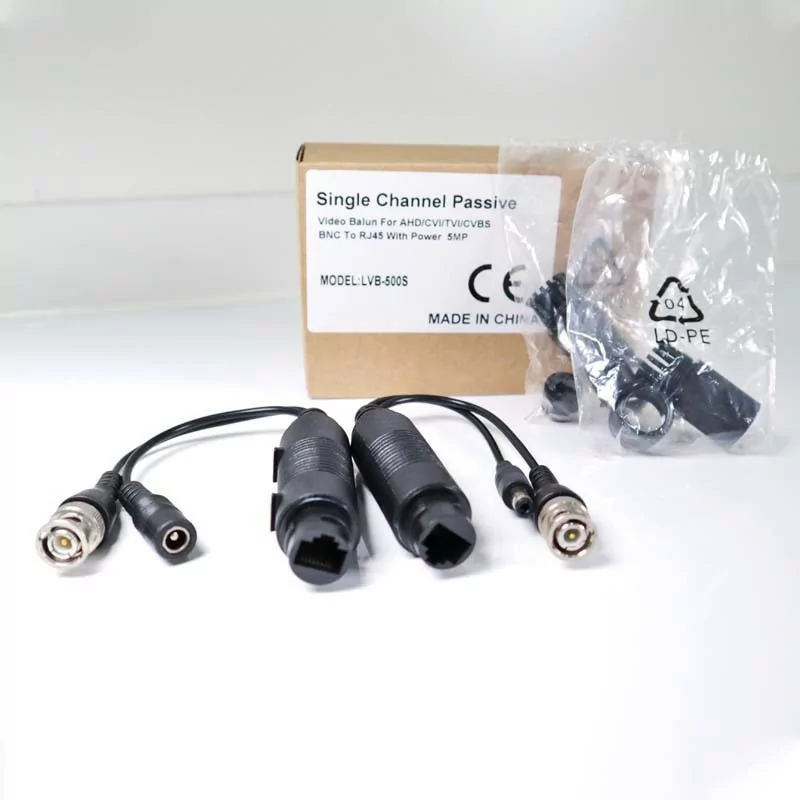

The balun set allows the transmission of a video signal from a source through a twisted pair cable. Thanks to the small size of the baluns and the combination with BNC plugs, there are no problems with direct connections to the BNC jacks of DVRs, even when they are densely packed.
The balun corresponds to the desired output/input impedance of 75 ohms with 100 ohms impedance of the balanced line and vice versa. In the case of a UTP / FTP cat. 5 cables, the transmission line can reach 150 meters (signals from HD-TVI, HDCVI, AHD cameras) or 400 meters (signals from CVBS cameras).
The set is compatible with PoC (Power over Coax) systems.
The installer must pay attention to connecting the proper wires to the correct terminals: (+) to (+) and (-) to (-). Incorrect connection will cause interference.
