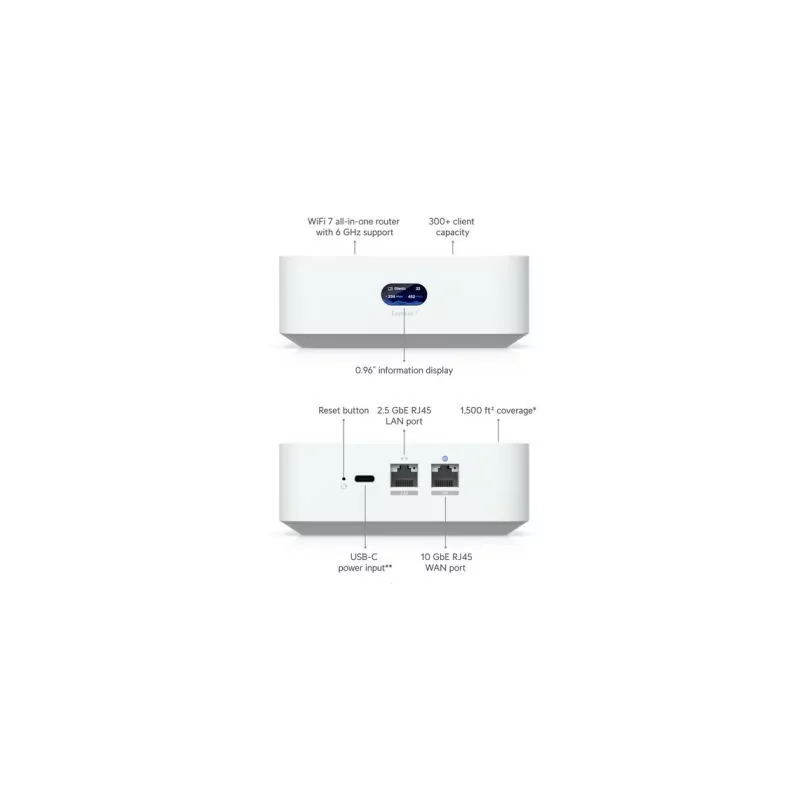

trong>UX7 Unifi Express 7

-Gateway en la nube 10G, supercompacta y escalable en mesh con WiFi 7 integrado.
-1 x 2.5 GbE RJ45 y 1x WAN 10 GbE RJ45.
-Rendimiento IDS/IPS 2,3Gbps
-2x2 Mu-MIMO en 2,4,5 y 6 Ghz.
-Rendimiento Wifi hasta 5,7Gbps en 6Ghz

Overview

Dimensions
117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite Network
Yes

Managed UniFi Devices
30

Simultaneous Users Connected
300

Default WAN Ports
(1) 10 GbE RJ45

LAN Ports
(1) 2.5 GbE RJ45

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Security

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI &amp, Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

VPN &amp, SD-WAN

-License-Free SD-WAN
Yes

-Site-to-Site VPN

Site Magic Yes
IPsec Yes
OpenVPN Yes

-VPN Server

Identity Endpoint One-Click VPN Yes
Teleport Zero-Configuration VPN Yes
WireGuard Yes
OpenVPN Yes
L2TP Yes

-VPN Client

OpenVPN Yes
WireGuard Yes

Networking

Dynamic Routing
OSPF Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

Integrated WiFi

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput
6 GHz 5.7 Gbps
5 GHz 4.3 Gbps
2.4 GHz 688 Mbps

MIMO
6 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Antenna Gain
6 GHz 6 dBi
5 GHz 7 dBi
2.4 GHz 4 dBi

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs
4 per Radio (Gateway Mode)
4 per Radio (AP Mode)
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

Max. Power Consumption
22W

Power Method
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM&reg, Cortex&reg,-A53 at 1.5 GHz

System Memory
3 GB

Weight
422 g (14.9 oz)

Enclosure Material
Polycarbonate

LCM Display
0.96" status display

Management
Ethernet
Bluetooth

LEDs
Ethernet Yes

ESD/EMP Protection
Air: &plusmn, 8kV, contact: &plusmn, 4kV

Ambient Operating Temperature
-10 to 40&deg, C (14 to 104&deg, F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Button
(1) Factory-reset

Software

VLAN
802.1Q

Guest Traffic Isolation
Yes

Application Requirements
UniFi Network Version 9.0.108 and later
