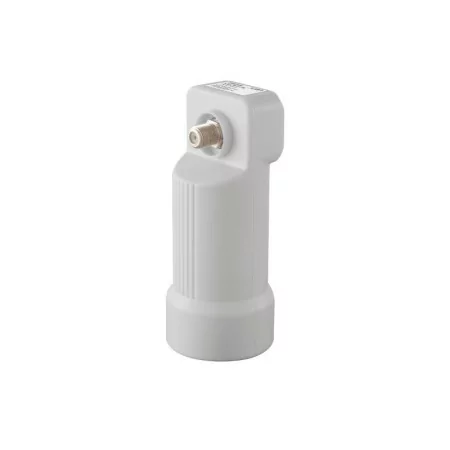

Amiko LNB Single Slim Eco (0.01 dB) - L108
REF: L108
EAN: 5999883021590
Amiko LNB Single Slim Eco (0.01 dB) - L108
REF: L108
EAN: 5999883021590
notifications
€3.90
Amiko LNB Single Slim Eco (0.01 dB) - L108
Legacy Outputs:
- Legacy outputs: 1
Noise Figure:
- 0.1dB
Reflector Type:
- Detour
Clamp Size:
- 40mm
Input Frequency Range:
- Low Band: 10.7GHz - 11.7GHz
- High Band: 11.7GHz - 12.7GHz
Output Frequency Range:
- Low Band: 950MHz - 1950MHz
- High Band: 1100 MHz - 2150 MHz
LO Frequency (Local Oscillator):
- Low Band: 9.75 GHz
- High Band: 10.6GHz
LO Frequency Noise Phase:
- Low Band: -60dBc/Hz @ 1KHz (Max.) / -85dBc/Hz @10KHz (Max.) / -95dBc @ 100KHz (Max.)
Conversion Gain:
- 58-63dB
- Gain Flatness in 26MHz Band: +/-0.5dB/36MHz
Polarity Switching Voltage:
- Horizontal: 16-18V
- Vertical: 12-14.5V
High Band Switching:
- 22KHz +/- 4KHz
Cross Polarity Isolation:
- >=18dB (Typ.)
Image Rejection:
- 40dB (Min.)
- Brand
- Amiko
- Reference
- L108
- Stock Online
- Available
- Stock Store
- Available
