POE / 802.3AF

Each PoE port powers up to 15W over a very short distance. Power delivered over a longer distance (up to 100 m) is 12.95 W.

POE+ / 802.3AT

Each PoE+ port powers up to 30W (2 pairs) or 60W (4 pairs) over a very short distance. Power delivered over a longer distance (up to 100 m) is 25.5 W or 51 W (4 pairs).

POE++ / 802.3BT

Each PoE++ port powers up to 60W (2 pairs) or 90W (4 pairs) over a very short distance. Power delivered over a longer distance (up to 100 m) is 51 W (2 pairs) or 71 W (4 pairs).

Main Features:

-PoE power supply up to 60 watts

-1 Ethernet 10/100/1000M input port

-1 PoE output port 10/100/1000M

-Compliant with IEEE 802.3bt/at/af standard

-Plug&play, simple installation with no configuration required

Specifications:

-No. of channels 1

- Data Pass Rates: 10/100/1000Mbps

-Power over Ethernet output:

-Pin assignment and polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),

-Output supply voltage: 53Vdc

- User port power: 60W

-Input power requirements:

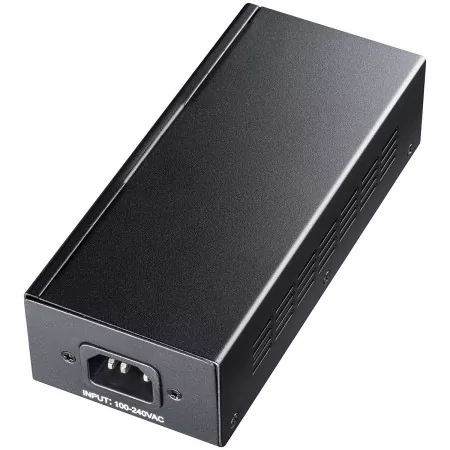

-AC input voltage: 100 to 240 VAC

- AC input current: 0.5A 100-240 VAC

-AC frequency: 50 to 60 Hz

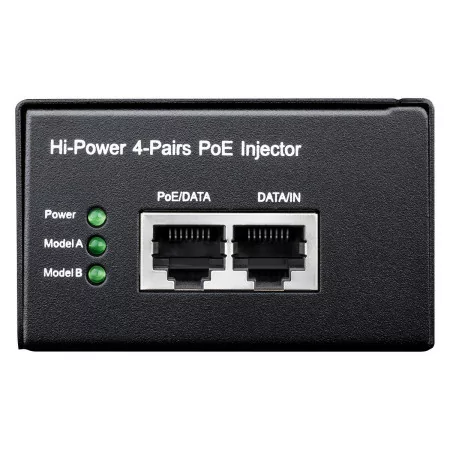

-Indicators:

-System indicator: AC power

-User indicator: Channel power

-Connectors: shielded RJ-45, EIA 568A and 568B

-Regulatory compliance:

-IEEE 802.3af (15.4W)

-IEEE 802.3at (30W)

-IEEE 802.3bt (60W)

-Dimensions: 145 x 60 x 40 mm
