• DVB-S2 Satellite & DVB-T2/C Terrestrial / Combo Receiver
• One Conax Embedded card reader
• H.265 / HEVC Codec support
• 5000 channels (TV and Radio) programmable
• External IR Sensor
• Two High Speed USB 2.0 Connection
• Ethernet Connection & USB WiFi Support
• YouTube videos
• RSS Reader & Weather Forecast Functions
• DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
• Full HD (1080p) Output via HDMI
• Channel Recording to External Storage Devices
• Timeshift support
• Channel Recording & Timeshifting Simulteniously
• Channel switching time less than 1 second
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG) for on screen channel information
• Subtitle supported
• Teletext supported by VBI insertion and software emulation
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• Multi-Language support
• RTC (Real-Time-Clock)
• Power Consumption in Stand-By: <0.5W

Tuner & Demodulation

• Tuner Type: DVB-S / DVB-S2
• Input Connector: F-type, Connector, Female
• Loop Through: F-type, Connector, Female
• Signal Level: -65 to -25 dBm
• LNB Power & Polarization: Vertical: +13V/+14V,
• Horizontal: +18V/+19V
• Current: Max. 300mA
• Overload Protection
• 22KHz Tone Frequency: 22±1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Input Symbol Rate: 2-45 Mbps,
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

• Tuner Type: DVB-T2 / DVB-C
• Frequency Range: 48~862MHz
• RF Input Level: -80dBm to -20dBm
• Antenna power output: DC 5V at max 75mA, Overload protection
• Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
• Input Symbol Rate: 1.0 ~ 7.0Ms/s
• Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
• Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources

• Main Processor: up to 2000DMIPS CPU
• Flash Memory: 8 MiB
• DDR RAM: 256 MiB (DDR3 1866MHz)

MPEG TS A/V Decoding

• Transport Stream: MPEG-2, MPEG-4 (H.264)
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: HEVC [email protected], MPEG2 MP@HL, MPEG-4 part 10/H.264
• Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i
• Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital, AAC
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz

A/V & Data Input/Output

• AV OUT: Video RGB&CVBS output, Audio L/R output (SCART)
• LAN: 10/100M RJ-45 Ethernet Connection
• USB: Two USB 2.0 slots
• HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output
• S/PDIF: Coaxial
• IR: External IR input (jack type)

Physical Specifications

• Size[W*H*D]: 144mm x 40mm x 110mm
• Net Weight: 0.50 Kg
• Operation Temperature: 0°C~+45°C
• Storage Temperature: -10°C~+70°C
• Storage Humidity: 5%~95% RH (Non-Condensing)

Package Contents

• Amiko Mini Combo Extra STB

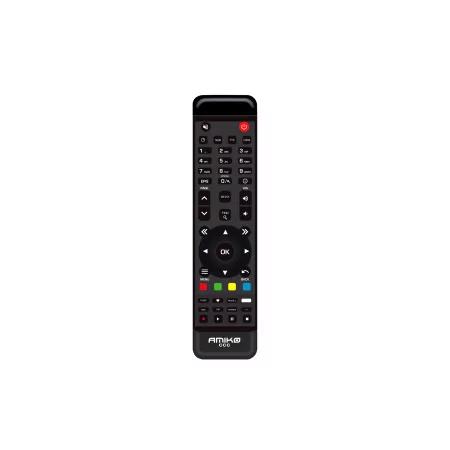

• Remote Control
• 2x AAA batteries
• Power Adapter
• User Manual
• HDMI Cable
• Jack-RCA Cable
• IR Extender Cable

- This kit includes the USB Wireless-N adapter Amiko WLN-851
