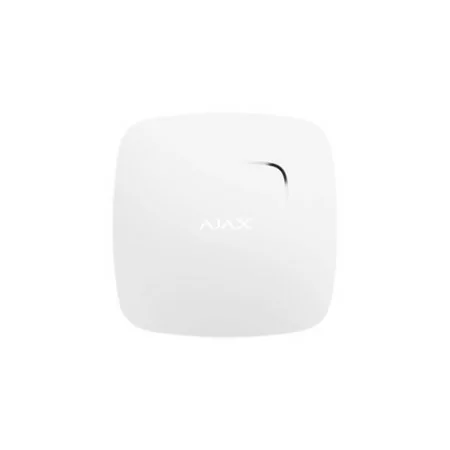

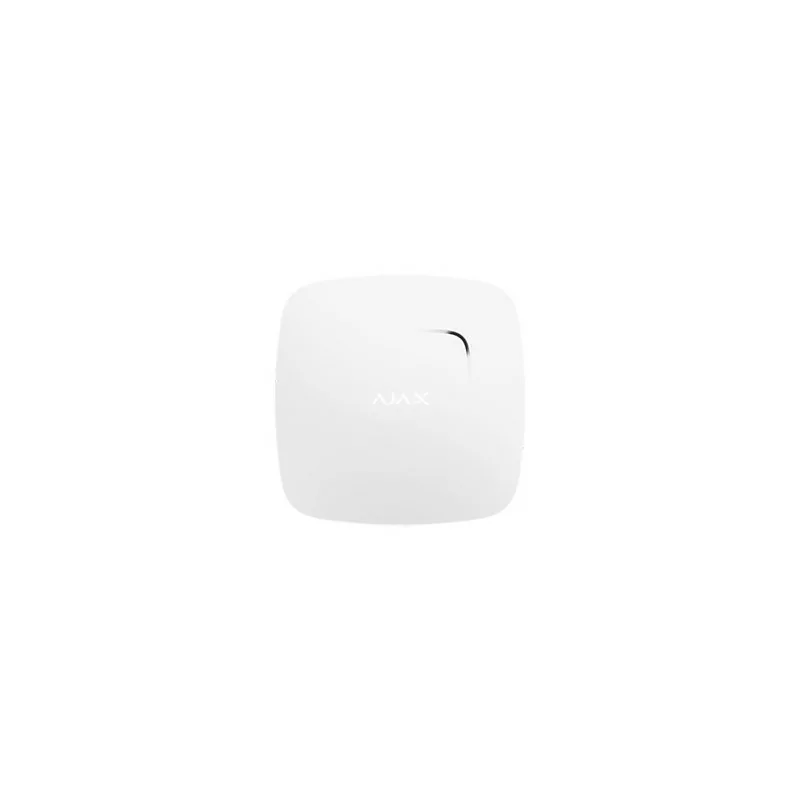

Operation principle

The device detects smoke through a camera with a photoelectric sensor. An additional chemical element detects carbon monoxide and triggers the alarm.

Functionalities

It can work independently from the hub, issuing a fire alarm via an integrated siren. Several detectors indicate an alarm at the same time.

Installation and configuration

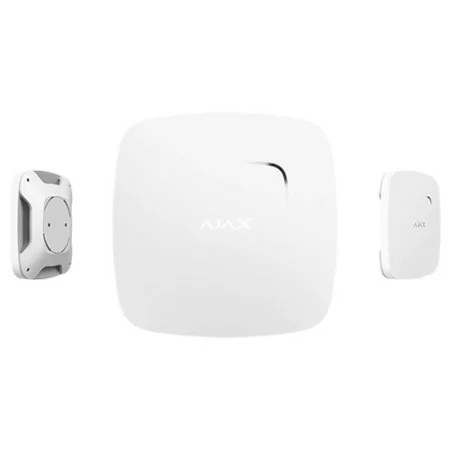

Ready to work out of the box: the battery is already installed, so there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile app. It can be mounted on the SmartBracket in just a few minutes.

Technical specifications:

Intern use

Sensitive Element Photoelectric Sensor for Smoke Detection

Temperature alarm signal at 60 °C

Carbon Monoxide (CO) Detection

Sound and light alarm type

Built-in siren volume 85 dB

Radio signal power 20 mW

Compatibility: Works with all Ajax hubs, repeaters, ocBridge Plus, uartBridge

Jeweler Communication Protocol

Maximum distance between detector and control unit up to 2,000 meters (in an open area)

Batteries type 2 CR2, 3V

Additional battery type CR2032

Battery life up to 4 years

Operating temperature: 0°C to +65°C

Dimensions: 132x132x31 mm

Weight: 0.216 kg
