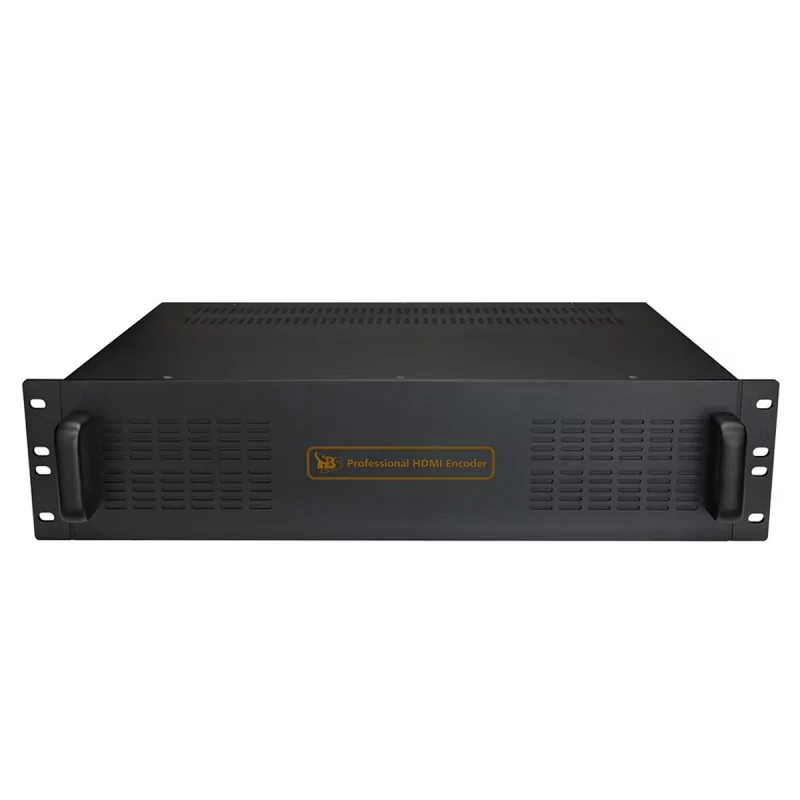

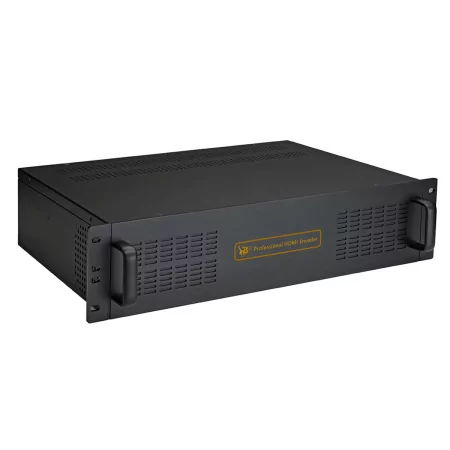

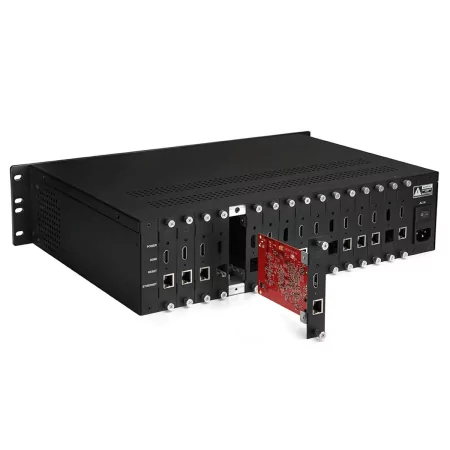

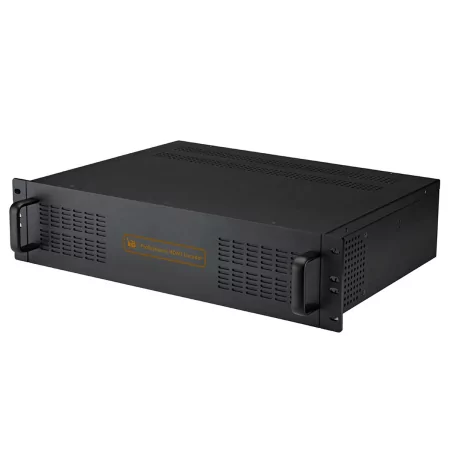

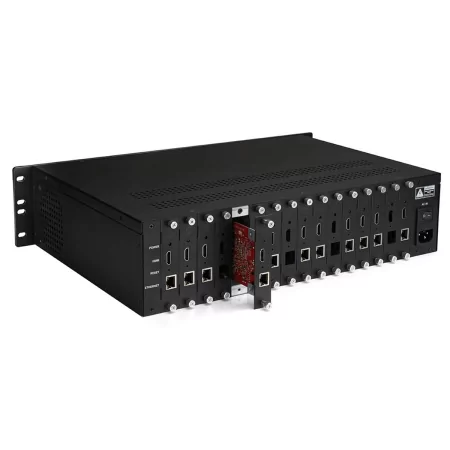

TBS2630 16 channel HD H.264/H.265 HDMI Encoder

TBS2630 is a professional Multi channel HD H.264/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality, supports 8/16 channels HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Main Features:

• Support multiple equipments display at the same time on a computer
• Support direct network connection without HD capture card
• Main stream and secondary stream can use different network protocols for transmission
• Low Power consumption, less than 6W
• compliant with HTTP/RTSP/RTP/RTMP/UDP protocols

Specifications:

• Input

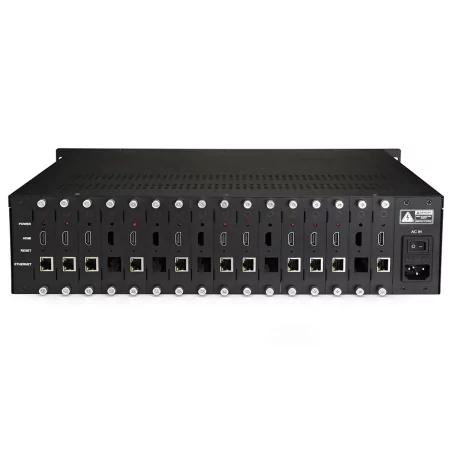

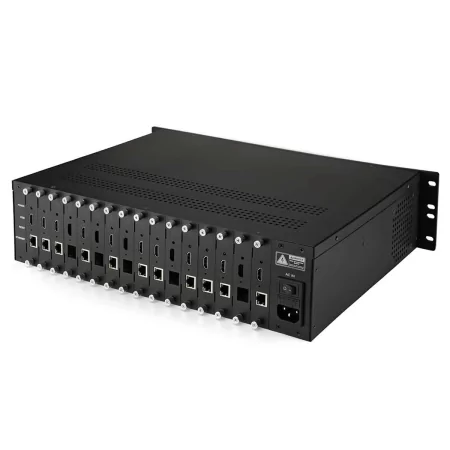

• Video Input: 8/16 x HDMI 1.3a
• Audio input: HDMI embedded audio
• AC in: 110V~240V
• AC rate: 60/50Hz

• Output
• DC Output: 12V/12.5A
• Power Dissipation: 96W

• Video
• Resolução HDMI: 1920x1080 / 1680x1050 / 1280x720 / 1600x1200 / 960x540 / 720*576 / 704*576 etc
• Encoding: BASELINE PROFILE (for H.264 and H.265) / MAIN PROFILE (for H.264 only) / HIGH PROFILE (for H.264 only)
• Data rate: 0.8Mbps~12Mbps
• Rate control: CBR/VBR, 16KBIT/S~12MBIT/S
• GOP structure: IBBP
• Advance Pretreatment: De-interlacing, Noise Reduction, Sharpening

• Audio
• Encoding: AAC, MP3
• Sampling Rate: Auto
• Bit rate: 32K/48K/64K/96K/128K/160K/192K
• Sampling precision: 16 bit
• Data Rate: 64Kb/s ~ 384Kb/s

• System
• OS: WINDOWS XP / VISTA / SERVER2003 / SERVER2008 / WIN7 32 and WIN7 64; LINUX
• Ethernet/RJ45: 1000 Base-T Ethernet interface

• Others
• Dimensions: 482mm*320.2mm*108mm
• Net weight: 7.5kg
• Temperature: -20℃+ 60℃
