WATCHDOG GUARANTEES THE UNINTERRUPTED OPERATION OF POE DEVICES

WatchDog PoE continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

PLUG & PLAY, FANLESS DESIGN

Plug and Play, easy to use, fanless design for silent operation, high quality metal case, sturdy and durable, with long service life, provides better heat dissipation, suitable for most environment.

Main Features:

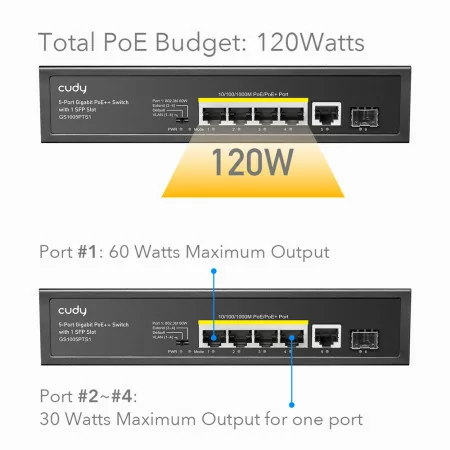

-Total PoE capacity of 120 watts

-4 Gigabit PoE+ ports and 1 Gigabit Ethernet port + 1Gigabit SFP

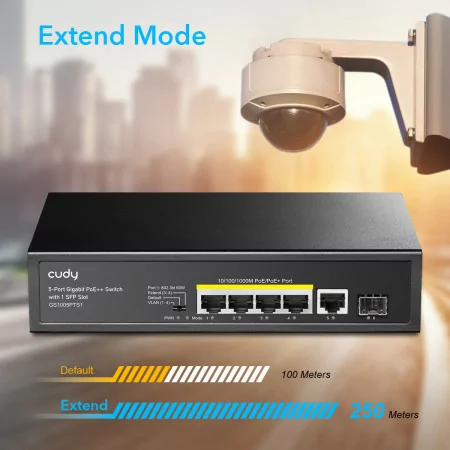

-Extend PoE power support remote mode up to 250m

-VLAN mode isolates each PoE port for security

-Watchdog reactivates abnormal POEPD, resuming power

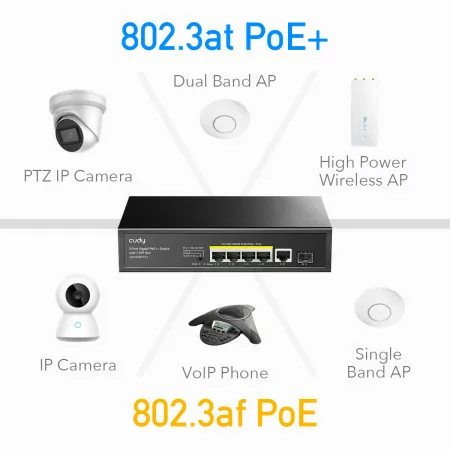

- Compliance with IEEE 802.3at / IEEE 802.3af standard

-Plug&play, simple setup and no configuration required

Specifications:

-Interface:

-4x RJ45 Gigabit PoE ports

-1x Gigabit RJ45 port

-1x Gigabit SFP Port

-PoE standards:

-IEEE802.3af (15.4W)

-IEEE802.3at (30W)

-IEEE802.3at (4 Pair 60W)

-Consumption: 120W for 4x PoE ports

-Maximum PoE output per port: 60W

-Switching Capacity: 12Gbps

- Means of network:

-10Base-T : Cat3、4、5 or higher UTP(≤100m)

-100Base-TX : Cat5 or higher UTP(≤100m)

-1000Base-TX : Cat5 or higher UTP(≤100m)

-MAC Address: 2K

-Transfer mode: Store and Forward

-Dimensions: 200 x 118 x 44 mm
