WATCHDOG GUARANTEES THE UNINTERRUPTED OPERATION OF POE DEVICES

WatchDog PoE continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

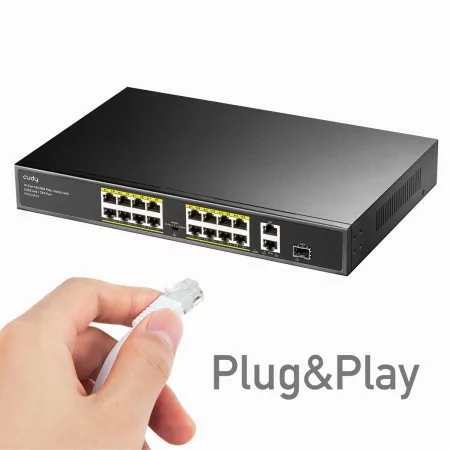

PLUG & PLAY, FANLESS DESIGN

Plug and Play, easy to use, fanless design for silent operation, high quality metal case, sturdy and durable, with long service life, provides better heat dissipation, suitable for most environment.

Main Features:

-200 watts of PoE power, up to 30 watts per port

-2x uplink 10/100/1000M ports +1 SFP port

-16 ports 10/100M PoE+

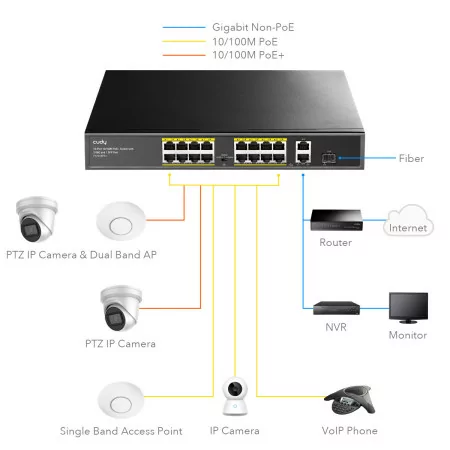

-CCTV mode supports PoE remote power up to 250m

-VLAN mode isolates each PoE port for added security

- Compliance with IEEE 802.3at / IEEE 802.3af standard

-Plug & play, simple setup and no configuration required

-Watchdog reactivates abnormal POEPD, resuming power

Specifications:

-Power supply: Built-in AC100~240V power supply

-Interface:

-16x 10/100Mbps PoE RJ45 Ports

-2x Gigabit RJ4 Ports

-1x SFP 1.25GbE port

-PoE standards:

-802.3

-802.3u

-802.3ab

-802.3af/at

-Consumption: 190W for 16x PoE ports

-Maximum PoE output per port: 30W

-Switching Capacity: 7.2Gbps

- Means of network:

-10BASE-T: Category 3, 4, 5 UTP cable(≤100m)

-100BASE-TX: UTP cable category 5, 5e(≤100m)

-MAC Address: 4K

-Dimensions: 280 x 180 x 44 mm
