smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

Classification of humans and vehicles

Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

4MP super high definition

The VIGI Bullet C440 camera comes with 4MP, more than enough to capture some of the finest details.

Full-Color 24h

Get 24-hour color detail, even in total darkness, via the high-sensitivity sensor and included floodlight LEDs.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Minimum illumination 0 lux with IR/white light

Day/night mechanism infrared cut filter

Lens Fixed focal lens (2.8mm / 4mm)

Aperture 2.8mm: F1.6

4mm: F1.6

M12 lens mount

Angle of View (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°

(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Working Distance IR 30m

30m Illumination Distance (LED)

Pan/Tilt Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

3D DNR Digital Noise Reduction

WDR DWDR

NETWORK

Security password protection, HTTPS encryption, IP address filtering, Digest authentication

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

Built-in microphone for audio input

Built-in audio output speaker

Reset button button

Integrated Storage Memory card slot, MicroSD card support, up to 256 GB

GENERAL

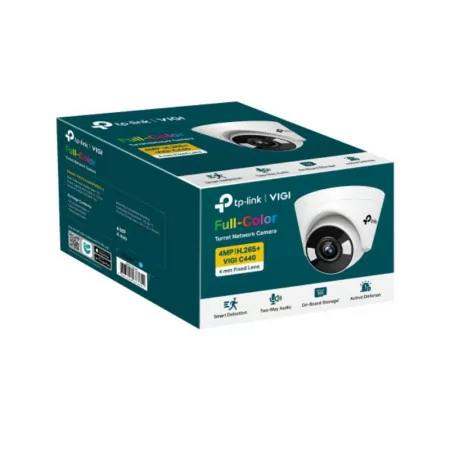

Package Contents VIGI Network Camera, Quick Start Guide, Mounting Accessories

Dimensions (HXLXP) 123 × 123 × 84 mm

Plastic Material

General Features Two streams, mirror, privacy masks, email password reset, HTTP listen

Power supply 12 VDC ± 5%, 5.5 mm coaxial power plug. PoE (802.3af/at, class 0)

VIDEO/IMAGE

Video compression main stream: H.265+/H.265/H.264+/H.264

Subflow: H.265/H.264

Frame rate and resolutions main stream

Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Substream: 64 Kbps to 512 Kbps
